In today's highly competitive business environment, Time-to-Market is a core factor influencing a company's market position. Traditional tooling and molding processes often involve long lead times and high upfront costs. As one of the mainstream additive manufacturing processes today, Stereolithography (SLA) technology has undergone over forty years of iteration to become a mature solution that balances precision and efficiency. It not only meets the fundamental needs of prototype testing but also penetrates into the low-volume production of functional parts. Feieer Tech is committed to introducing cutting-edge additive manufacturing technologies, delivering reliable custom 3d printing for businesses to help teams optimize R&D workflows and achieve efficient transitions from conceptual design to functional validation.
At its core, SLA 3D printing is a "vat polymerization" additive manufacturing technology. Its fundamental principle involves using a light source of a specific wavelength (mostly UV light) to irradiate liquid photosensitive resin, triggering a photopolymerization reaction that cures the resin layer by layer to build a three-dimensional solid structure. Compared to other processes, the primary engineering advantages of SLA lie in its high molding precision, excellent surface finish, and the fact that finished parts possess good watertightness and isotropic material properties.
The Evolution from Large Industrial Equipment to Accessible Tools:
Technological Origins: In the 1980s, Japanese researcher Hideo Kodama proposed a layer-by-layer manufacturing method using photosensitive polymers. Subsequently, American scientist Charles W. Hull coined the term "Stereolithography," obtained a patent in 1986, and founded 3D Systems. Early equipment typically functioned as a massive industrial 3d printer costing over $100,000.
Desktop Revolution: In 2013, the first desktop SLA printer, the Form 1, was introduced. Subsequent iterations in 2015 (Form 2) and 2019 (featuring LFS technology) significantly lowered the barrier to entry.
Current Landscape: Today, SLA stands alongside FDM and SLS as one of the three mature plastic 3D printing processes. Companies can leverage the diverse SLA equipment portfolio provided by Feieer Tech to achieve in-house prototyping and agile production.
The core process of SLA revolves around file parsing and photopolymerization, consisting of two main stages:
Printing Phase: First, a 3D model is designed using CAD software and parsed into multi-layer cross-sectional data by dedicated slicing software. Then, the light source precisely irradiates the liquid resin in the vat based on this data. Next-generation equipment features optimized peel force designs, effectively preventing deformation of large or thin-walled parts during the curing process.
Post-Processing Phase (Mandatory): After printing, solvents like isopropyl alcohol (IPA) or ethanol must be used to wash away the residual liquid resin on the surface (Washing). The part is then placed in a post-curing unit where UV exposure completes the polymerization process (Curing), ensuring the part achieves its designed mechanical strength and dimensional stability.

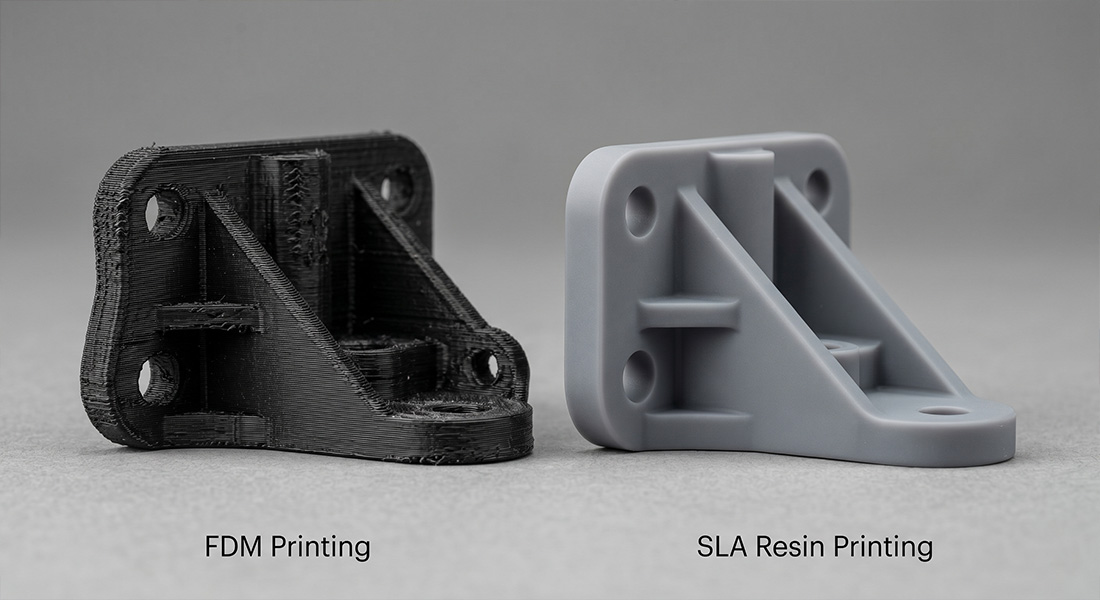

When evaluating 3D printing technologies for R&D and production workflows, Stereolithography (SLA) and Fused Deposition Modeling (FDM) each offer distinct advantages that can serve different stages of product development. Rather than viewing them as an either-or choice, combining both technologies can create a highly versatile engineering toolkit.
Technology | Core Mechanism & Materials | Key Engineering Strengths | Ideal Applications |
|---|---|---|---|
FDM | |||
(Fused Deposition Modeling) | Filament-Based Extrusion: Utilizes durable thermoplastic filaments (e.g., PLA, ABS, and Carbon Fiber composites). | Excellent tensile strength and impact resistance for robust structural integrity. | Heavy-duty jigs, robust functional prototypes, and large-scale structural components. |
SLA | |||
(Stereolithography) | Resin-Based Photopolymerization: Utilizes diverse liquid photopolymer resins. | Ultra-high resolution (up to 50 microns), isotropic properties, and injection-mold-like surface finishes (zero visible layer lines). | Intricate micro-structures, fluid dynamics testing (clear resins), and high-fidelity aesthetic prototypes. |
Integrating both FDM and SLA technologies can enhance operational agility. A common strategy involves deploying FDM for rapid structural conceptualization and robust tooling, while utilizing SLA for stringent tolerance verification, complex geometries, and final pre-production presentation models.

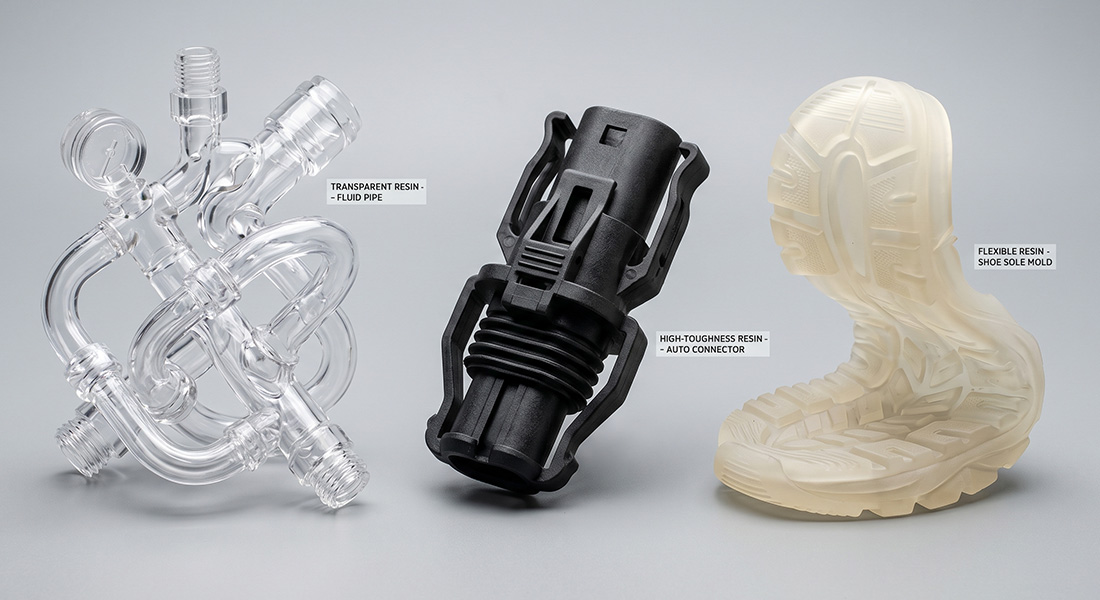

The depth of SLA's application depends heavily on its extensive material compatibility. Feieer Tech provides a comprehensive range of industrial-grade resin solutions to accurately simulate the mechanical performance of various thermoplastics:
Resin Type | Key Engineering Properties | Typical Applications |
|---|---|---|
Tough Resins | Feature excellent impact resistance; mechanical performance is similar to traditional ABS materials. | Validating functional structural components and snap-fit assemblies. |
Flexible Resins | Simulate rubber and silicone materials (e.g., 40A Shore hardness); offer excellent elasticity and rebound. | Damping pads, industrial seals, and functional testing for footwear molds. |
Clear Resins | Offer excellent optical transparency and smooth surface finish. | Fluid testing pipes, automotive lighting assemblies, and transparent packaging prototypes. |
High-Temp/Rigid Resins | Maintain high dimensional stability under extreme temperatures and stress without thermal creep. | Wind tunnel testing models, and custom production line jigs and fixtures. |
Safely optimized specifically for medical and healthcare environments. | Customized dental surgical guides and surgical auxiliary tools. |
To meet varying scales of production demands, modern SLA manufacturing technology delivers significant productivity upgrades across two main dimensions:

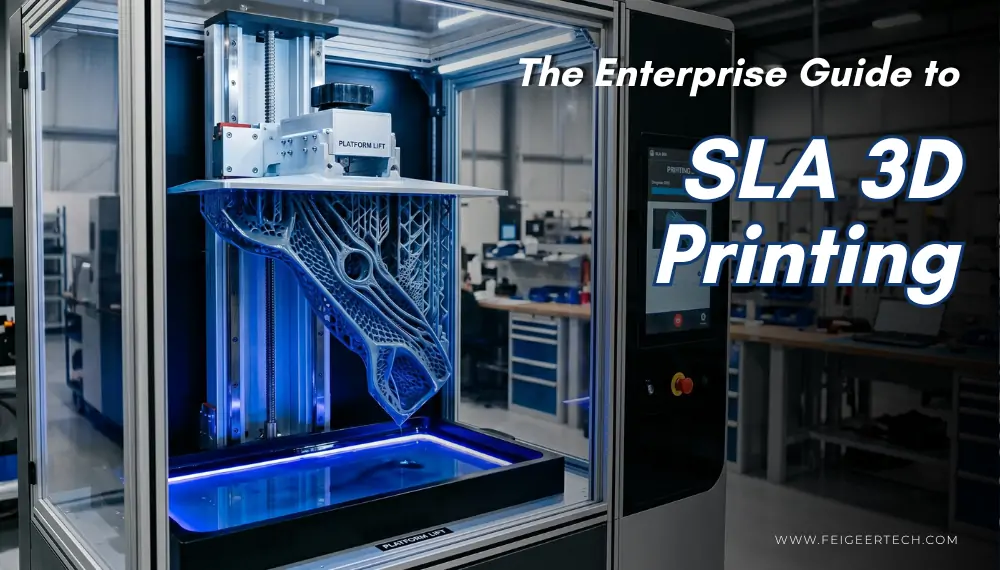

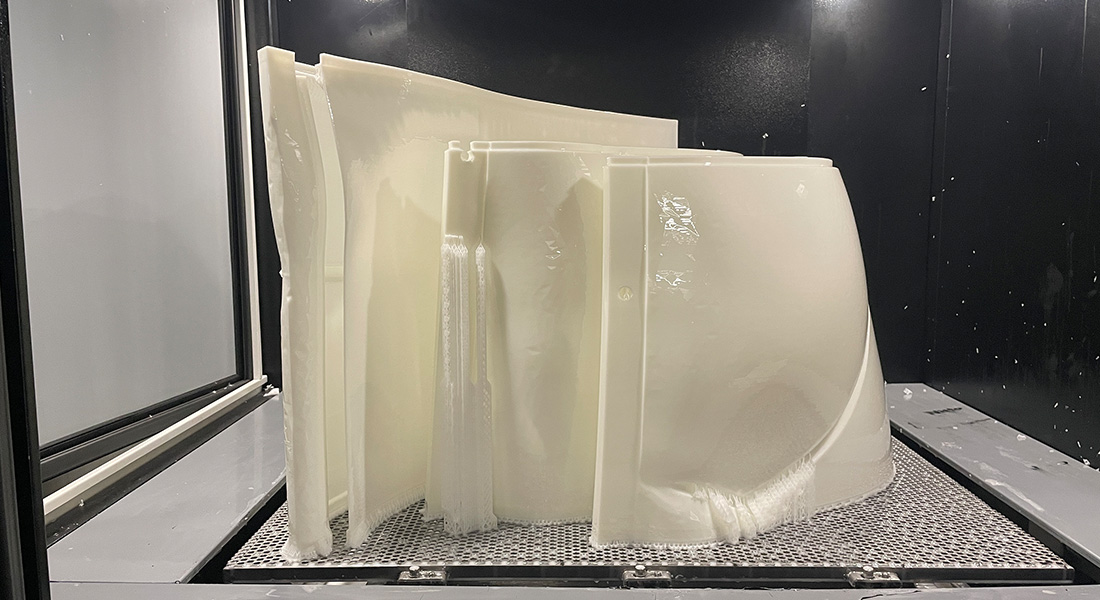

Leveraging industrial-grade SLA systems with massive build volumes, it is now possible to print large-scale components in a single piece. In sectors like the automotive industry, entire front grilles or interior consoles can be manufactured directly for assembly validation. This eliminates the tedious splicing and bonding processes required by smaller machines, fundamentally ensuring the overall structural integrity and strength of the final part.
For R&D teams requiring high-frequency iteration, advanced SLA printing technology utilizes optimized high-power light sources to achieve rapid, highly accurate curing of resin layers.
Throughput Efficiency: Production speeds are significantly accelerated compared to traditional manufacturing. Most prototype parts can be completed within a few hours, and in specialized fields like dental or medical, precise custom models can be produced in under 45 minutes, dramatically shortening the iteration cycle.
Operational Agility: Optimized printing workflows and environmental controls minimize setup and processing times, allowing for rapid and seamless material switching among extensive libraries of engineering and biocompatible resins to meet immediate project needs.
With its combined advantages of high precision, multi-material capabilities, and large build volumes, SLA technology has deeply penetrated multiple sectors through practical engineering applications:
Industrial Manufacturing & Automotive: Rapid production of large-scale workshop tools, custom fixtures, non-standard replacement parts, and automotive exterior component validation.
Consumer Goods Design: Fast production of footwear prototypes with complex textures, supporting ergonomic validation and low-volume market testing before mass tooling.
Medical & Dental: Rapid batch production of customized surgical guides and orthodontic models.
From early large-scale industrial machines to today's mainstream technologies that balance large-format production with high-speed desktop iteration, SLA 3D printing has achieved substantial breakthroughs in precision, efficiency, and material reliability. Implementing mature additive manufacturing solutions provides tangible engineering support for agile R&D and cost reduction.
