As electric motors advance across industrial automation, EVs, and robotics, the electric motor housing has evolved far beyond a basic cover. Today, a highly optimized custom motor enclosure acts as the structural backbone of the assembly, providing critical heat dissipation, vibration control, and environmental protection.
Whether designing a compact servo or a heavy-duty drive motor, selecting the right material and manufacturing process directly impacts performance, reliability, and production costs. This 2026 guide explores key factors in the custom motor housing manufacturing process, compares core materials and production methods (such as CNC machining, stamping, and die-casting), and offers practical Design for Manufacturability (DFM) strategies; Feigeer Tech aims to help Original Equipment Manufacturers (OEMs) optimize product quality and effectively manage budgets.
Before selecting materials or manufacturing methods, it is essential to understand the primary multidimensional functions the enclosure must fulfill within a dynamic mechanical system.
The Motor Frame provides the foundation for the entire motor assembly. It supports consistent alignment between the stator, rotor, bearings, and shaft during continuous operation. Minor housing deformation under torque can alter critical air gaps inside the motor, reducing efficiency and accelerating component wear. For high-speed motors and precision servo systems, maintaining this dimensional stability over the long term is vital.
Electric motors generate heat continuously during operation through copper losses, magnetic losses, and mechanical friction. The exterior Motor Shell acts as the primary pathway for transferring thermal energy from internal components to the surrounding environment. Efficient heat dissipation helps improve motor efficiency, extend insulation life, protect permanent magnets from degradation, and increase overall operating reliability.
Motor vibration affects both performance and user experience. Proper housing design helps absorb and dampen harmonic frequencies before they reach surrounding structures. For instance, a highly optimized Treadmill Motor Housing utilizes specific wall thicknesses and mounting features to absorb rotational vibration, keeping operational noise to minimal levels in consumer environments.
Motor housings must often protect sensitive internal components from dust, water, chemicals, and mechanical impacts. The required level of protection is defined by the motor's Ingress Protection (IP) rating:
IP54: Provides protection against dust accumulation and water splashes. Typical for indoor automation equipment and industrial control systems.
IP65: Designed for high-level dust protection and resistance to low-pressure water jets. Used for outdoor equipment, agricultural machinery, and material handling systems.
IP67: Protects against temporary immersion in water. Essential for electric vehicles, outdoor robotics, and mobile industrial equipment.
IP69K: Designed for high-pressure and high-temperature washdown environments. Required for food processing facilities, pharmaceutical manufacturing, and sanitary equipment.

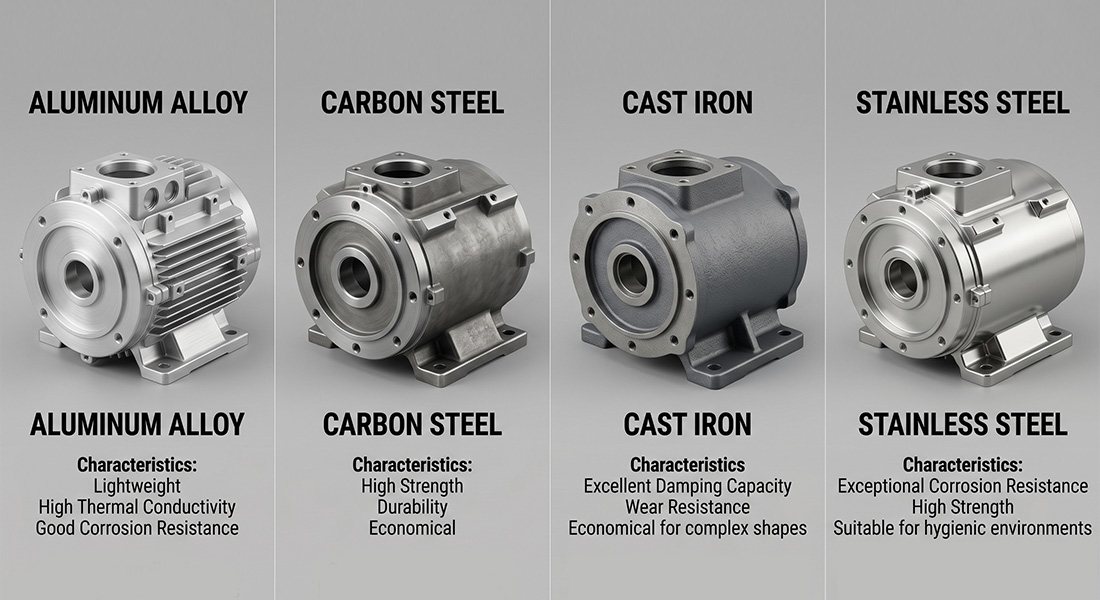

Material selection significantly influences thermal performance, structural weight, corrosion resistance, and CNC manufacturing costs.
Material |
Weight |
Thermal Conductivity |
Corrosion Resistance |
Relative Cost |
|---|---|---|---|---|
Aluminum |
Excellent |
Excellent |
Good |
Medium |
Carbon Steel |
Poor |
Moderate |
Poor |
Low |
Cast Iron |
Poor |
Moderate |
Moderate |
Low |
Stainless Steel |
Moderate |
Moderate |
Excellent |
High |
Because of its excellent balance between performance and manufacturability, a precision aluminum motor housing is often the preferred choice for modern applications.
Advantages: Excellent thermal conductivity, lightweight construction, good corrosion resistance, and high machinability. It is highly suitable for carving out complex geometries and integrated cooling fins.
Typical Applications: Servo motors, robotics, electric vehicle powertrains, aerospace actuators, and automation equipment.
When extreme durability and vibration control are prioritized over weight reduction, ferrous metals are the preferred choice.
Advantages of Carbon Steel: Offers high mechanical strength, excellent durability, good impact resistance, and cost-effective raw material pricing.
Advantages of Cast Iron: Outstanding vibration damping, high compressive strength, and excellent dimensional stability under heavy loads. The increased weight actually improves vibration dampening in heavy-duty applications.
Typical Applications: Heavy industrial equipment, mining machinery, wind turbine generators, heavy-duty pumps, and large Motor Casing designs for conveyor systems.
When chemical corrosion resistance becomes the primary concern, stainless steel is a highly reliable solution.
Advantages: Excellent inherent corrosion resistance without the need for secondary coatings, highly hygienic surface properties, and exceptional durability.
Typical Applications: Food processing equipment, pharmaceutical machinery, deep-sea marine applications, and medical devices.
Thermal performance is one of the most critical aspects of motor housing design. The physical geometry of the enclosure dictates how effectively heat is removed from the stator.
Cooling Fins: External cooling fins increase the total surface area and improve natural convection. Benefits include lower operating temperatures, improved motor efficiency, and longer component lifespans.
Extruded Aluminum Profiles: Extruded housings can integrate cooling fins directly into the profile from the start. This provides lower production costs, consistent geometry, and excellent heat transfer performance.
Liquid Cooling Channels: High-power motors often require liquid cooling systems integrated directly into the housing walls. This is common in electric vehicles, industrial automation, and high-performance servo systems.
Thermal Interface Optimization: Proper physical contact between the stator and the housing improves heat transfer efficiency. Critical considerations include surface flatness, specific press-fit design, and the application of advanced thermal interface materials.
Different industries demand entirely unique motor enclosures. Aligning the housing architecture with its specific end-use application optimizes system longevity:
Industrial Automation (Servo Motors & Robotics): Requires high geometric stability for rapid movements. A precision-machined DC Motor Frame or DC Motor Housing maintains the strict positioning accuracy required for modern automation.
Electric Vehicles (Traction & Cooling Motors): Demands a lightweight Custom Motor Housing featuring integrated liquid cooling channels to manage high thermal loads while optimizing vehicle range.
Renewable Energy (Wind & Solar Systems): Operates in harsh outdoor elements. A heavy-duty iron or steel Motor Casing provides the massive structural support and weather resistance needed for continuous operation.
Consumer Equipment (Appliances & Fitness): Prioritizes acoustic control and cost-efficiency. A well-designed Treadmill Motor Housing absorbs vibration for quiet operation, while high-volume appliances rely on highly economical Stamped Motor Housings.
Selecting the appropriate fabrication method depends on your production volume, geometric complexity, precision requirements, and overall budget.

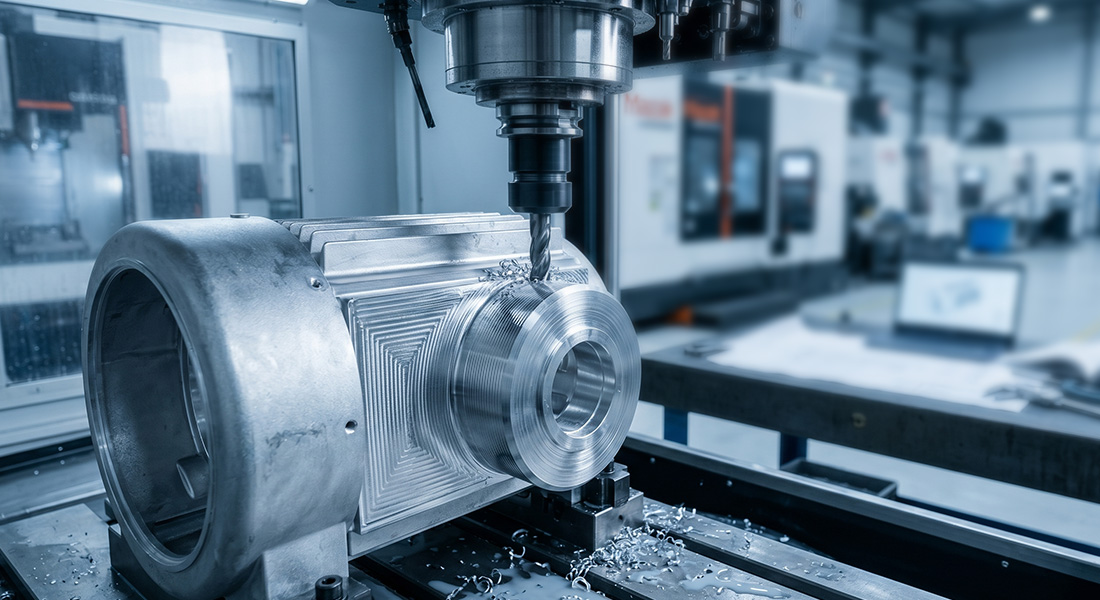

Advanced motor housing machining is ideal for prototypes, low-to-medium volume production, and high-precision applications. It allows manufacturers to achieve highly accurate bearing bores, precise stator seats, and complex mounting features directly from a solid billet of metal.
Die casting is commonly used for medium-to-high production volumes. While the initial tooling investment is higher, it becomes highly economical for larger production runs. It offers excellent repeatability, reduced secondary machining requirements, a lower unit cost at scale, and the ability to form complex external shapes.
Stamping is ideal for thin-wall enclosures produced in massive quantities. Stamped Motor Housings provide extremely high production rates, low cost per unit, and consistent quality. This method is heavily utilized for household appliances, power tools, and small fractional horsepower electric motors.
Extrusion offers a highly efficient solution for long motor body designs, such as linear motors or standard industrial automation systems. It allows for integrated cooling fins along the entire length, lowers material waste, and provides excellent overall production efficiency. The extruded profiles are typically followed by secondary CNC operations to finish the critical internal bores.
Manufacturing Method |
Precision |
Tooling Cost |
Production Volume |
Design Flexibility |
|---|---|---|---|---|
CNC Machining |
High |
Low |
Low-Medium |
High |
Die Casting |
Good |
High |
Medium-High |
Good |
Stamping |
Moderate |
High |
Very High |
Limited |
Extrusion + CNC |
High |
Medium |
Medium-High |
Good |
Good DFM practices reduce manufacturing costs while improving product quality and accelerating time to market.
Use Standard Internal Radii: Designing with standard tool sizes in mind reduces machining time, limits the need for expensive custom-ground tooling, and speeds up the CNC process.
Optimize Wall Thickness: Wall thickness should be sufficient for structural performance and stator press-fits without adding unnecessary weight or material costs.
Reduce Deep Pockets: Deep cavities increase machining complexity and cycle times. Whenever possible, simplify pocket geometry, increase tool access, and minimize extreme depth-to-width ratios to prevent tool breakage.
Apply Tolerances Strategically: Tight geometrical tolerances should only be applied to critical functional features, such as bearing bores, stator mounting surfaces, and shaft alignment features. Non-critical exterior surfaces can use standard open tolerances to significantly reduce inspection costs and scrap rates.
The lowest raw material price does not always result in the lowest overall manufacturing cost. Procurement teams must evaluate the full spectrum of production variables.
Factors affecting the total cost include raw material pricing, CNC machining cycle times, tooling investments, surface treatment requirements, quality inspection time, and assembly efficiency. For example, selecting a lower-cost, hard-to-machine steel alloy over a highly machinable aluminum grade may triple the machine hour rate, resulting in a significantly higher total production cost. Successful projects balance mechanical performance requirements with manufacturing efficiency from the earliest design stages.
At Feigeer Tech, we support OEM customers throughout the entire product lifecycle. By combining deep engineering expertise with advanced factory-floor technologies, we help reduce development risks and accelerate your time-to-market.
As a dedicated motor housing manufacturer, our core capabilities are built around delivering ready-to-assemble, high-performance components:
3-Axis & 5-Axis CNC Machining: Capable of producing complex internal cooling channels, precise stator press-fits, and off-axis mounting holes with high accuracy.
Aluminum, Steel, and Stainless Steel Processing: Comprehensive material expertise tailored to meet your specific thermal, structural, and environmental requirements.
Prototype to Production Support: Seamlessly scale from a single proof-of-concept CNC motor housing directly into high-volume manufacturing runs.
Precision Tolerance Control: Utilizing advanced CMM inspection equipment to support strict geometric and dimensional tolerances for precise bearing and rotor alignment.
Surface Finishing Services: Offering hard anodizing, black oxide, powder coating, and custom plating to help your components meet stringent IP ratings and aesthetic standards.
Whether your application requires a lightweight aluminum shell, a heavy-duty cast casing, or a highly specialized custom motor enclosure, working with an experienced manufacturing partner is a strategic advantage. Reach out to the Feigeer Tech engineering team today to review your CAD designs and streamline your next motor development program.
