When people talk about motorcycle performance, they often focus on the engine, suspension, or braking system. But one component that quietly carries enormous importance is the Motorcycle Axle. It is not the most visible part on a bike, yet it directly affects wheel support, alignment, rotation stability, and long-term riding safety.
For manufacturers, custom builders, and parts buyers, understanding the role of a motorcycle axle is more than basic product knowledge. It is closely related to precise fit, material selection, tolerance control, surface finish, and the quality of the final riding experience. In high-demand applications, the difference between a standard retail part and a precision-machined axle can be seen in vibration control, assembly consistency, and service life.
This article explains the structure and function of these crucial components, how a motorcycle rear axle differs from the front, why precision matters, and how advanced CNC Machining supports reliable custom production.

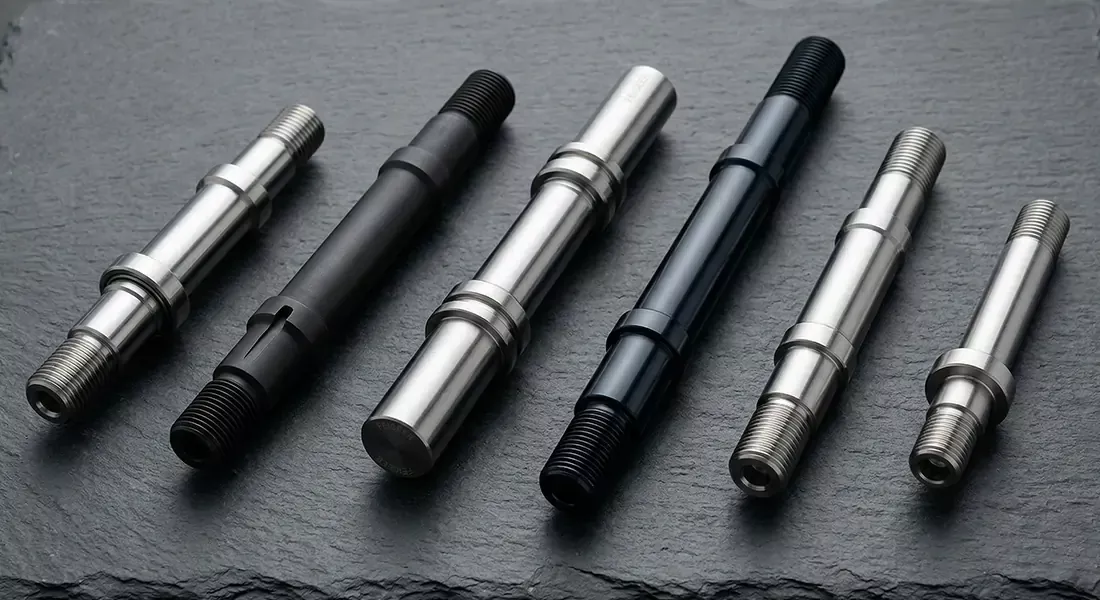

A motorcycle axle is the heavy-duty, shaft-like component that passes through the wheel hub, connecting the wheel assembly to the front fork or rear swingarm. In simple terms, it helps locate the wheel correctly, supports the vertical and lateral loads, and allows stable rotation together with bearings, spacers, and related mounting hardware.
Although riders often describe it as “just the rod through the wheel,” the axle is actually a high-precision component. Its diameter, straightness, shoulder design, thread accuracy, and surface quality all influence how well the wheel is mounted and how smoothly the surrounding components work together.
When sourcing a high-quality axle, motorcycle builders and engineers look for manufacturing quality, dimensional consistency, and application-specific design rather than simple retail replacements.

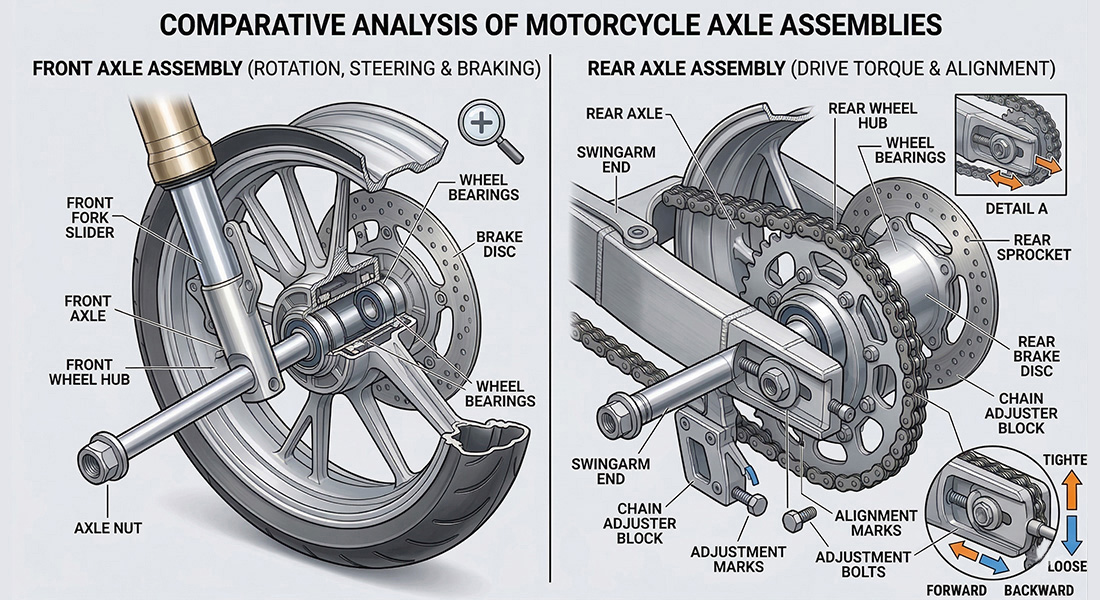

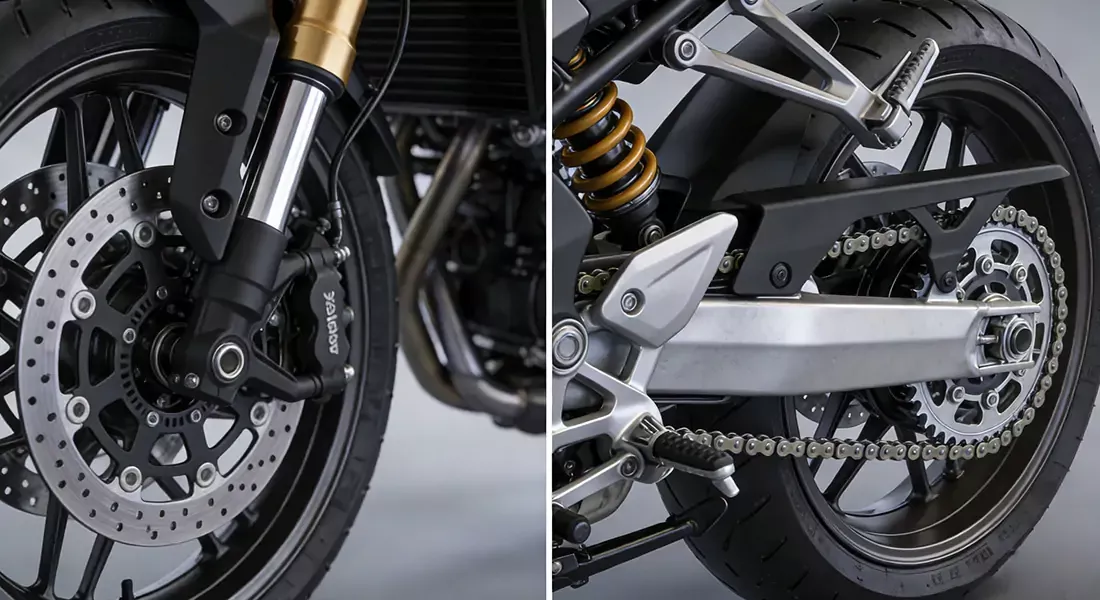

A standard two-wheel vehicle typically uses both a front and a rear axle. The front axle mainly supports the front wheel structure and works synchronously with the front fork system to handle steering and braking loads.

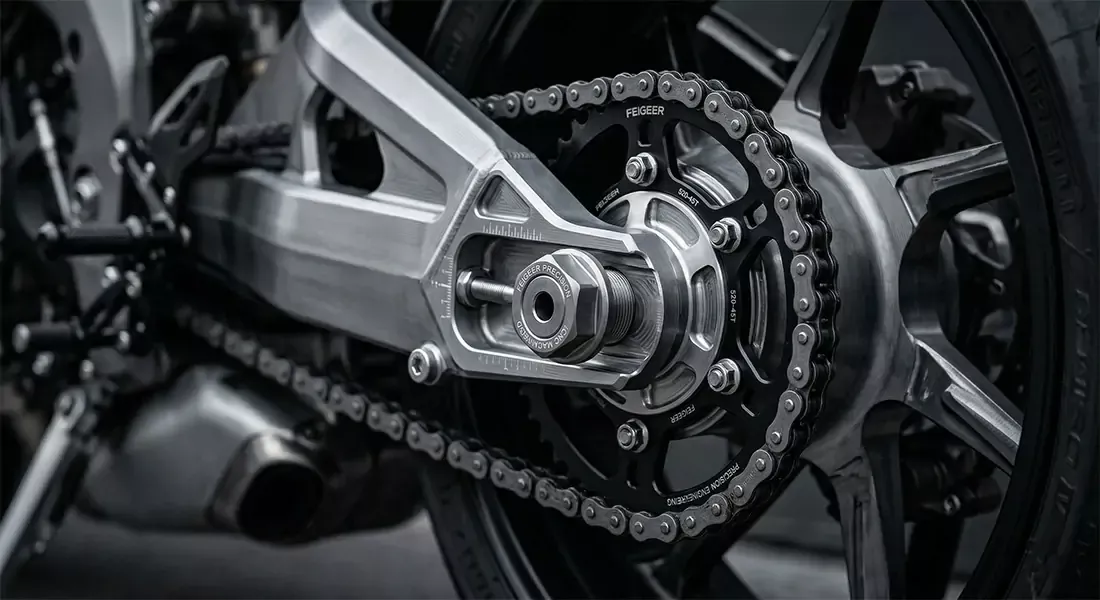

However, the motorcycle rear axle plays an equally important but often more demanding role. It interacts directly with the swingarm, rear wheel hub, spacers, sprocket-side layout, and—on chain-driven motorcycles—the rear wheel alignment system.
In practical maintenance guidance from major motorcycle manufacturers, rear axle alignment is treated as a critical safety issue. Honda owner documentation, for example, notes that the left and right swingarm ends should align to the exact same reference mark when checking rear axle position. Official maintenance schedules from Harley-Davidson also emphasize following strict service-manual torque procedures and regular lubrication intervals.
That is why a motorcycle rear wheel axle is not simply a generic steel bar. It must work within a complex mounting system where concentricity, seating accuracy, and repeatable assembly are vital.
From a riding perspective, the rear axle helps keep the wheel tracking perfectly straight under extreme acceleration. From an engineering perspective, it does much more:
The axle determines exactly where the wheel sits relative to the swingarm, brake calipers, and drive system. A microscopic dimensional error can create mounting stress, premature bearing wear, or inconsistent wheel positioning.
On chain-driven bikes, improper positioning of the rear axle, motorcycle mechanics warn, can ruin chain tension consistency and sprocket life. The axle is the anchor point for all drivetrain adjustments.
Even when using high-quality bearings, poor shaft seating geometry or an unsuitable surface finish can drastically reduce performance. Renowned bearing manufacturers like SKF note that bearing seat texture and shaft/seal counterface roughness are critical design considerations for sealing and longevity.
Precision in thread length, shoulder transition, chamfering, and surface finish makes installation repeatable and secure. That matters in OEM supply chains, aftermarket upgrades, racing use, and custom garage builds.
A top-tier axle is not defined by its polished appearance alone. It is defined by whether it can perform reliably under repeated dynamic stress, correct torque specifications, environmental exposure, and long-term rotation.
High-quality motorcycle axles must balance several metallurgical and geometric factors:
Adequate material tensile strength
Proper toughness (to bend slightly under extreme impact rather than shatter)
Highly accurate diameter control
Perfect straightness (zero runout)
Clean, burr-free thread quality
Suitable surface finish at critical contact areas (bearing seats)
This is why the manufacturing process dictates the final quality. Two axles may look similar in photos, but their behavior under heavy loads can be vastly different.
When buyers and brands search for custom components today, they want consistency, customization, and flawless production quality. That is exactly where CNC Machining provides unbeatable value.
In modern shaft manufacturing, industry leaders like Sandvik Coromant highlight that long geometries and internal features create significant machining challenges. At Feigeer Tech, we overcome these challenges by applying advanced multi-task CNC machining to our axle production.

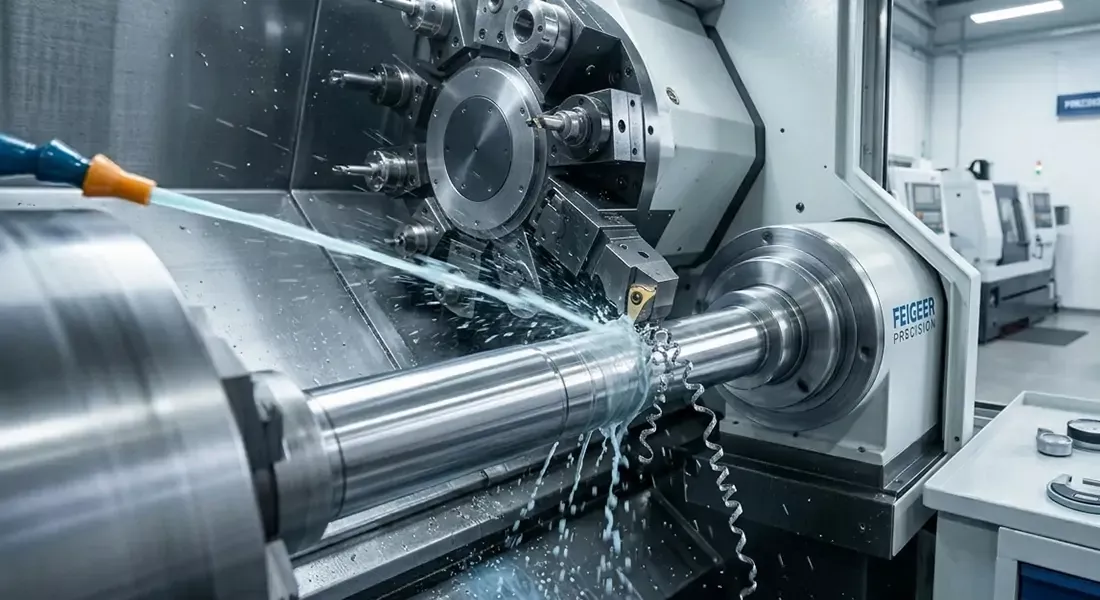

Diameter tolerance is the most important factor in any motorcycle rear wheel axle project. If the fit is too loose, high-speed stability suffers. If it is too tight, assembly becomes impossible, and component life is shortened. Feigeer Tech utilizes high-precision CNC turning centers to control these interface dimensions strictly within micrometer tolerances.
Surface finish affects contact behavior, wear resistance, and sealing. CNC turning surface quality is influenced by cutting speed, insert geometry, and vibration tendencies. A capable manufacturer like Feigeer Tech doesn’t just "machine to shape"; we control the tool path and process stability so the part performs correctly in harsh environments.
For custom axle work, especially involving hardened alloy steels or titanium, high-strength components require staged machining:
Rough machining
Heat treatment (to achieve optimal toughness)
Finish CNC turning or grinding
Deburring, inspection, and final cleaning
This systematic approach is what separates premium engineered axle components from low-end commodity parts.
Whether you are sourcing for aftermarket upgrades, custom bikes, or OEM development, choosing the right supplier is about much more than just unit price.
Tolerance Capability: Ask whether the supplier can consistently control critical shaft diameters, shoulders, and coaxial relationships.
Surface Finish Control: Bearing seats, seal contact zones, and threaded ends each require different finish standards.
Material Expertise: A good supplier should explain why a specific steel grade (like 4140 Chromoly) or Titanium alloy is recommended, and how heat treatment will affect dimensional stability.
Rigorous Inspection: A serious manufacturer verifies straightness, major diameters, and thread pitch using advanced inspection tools (like CMMs), rather than relying on basic visual checks.
At Feigeer, we see precision-machined axles being utilized in a variety of high-demand scenarios:
OEM or Replacement Programs: Reproducing existing axle designs with perfectly stable quality.
Performance Upgrades: Riders demanding improved fit, lighter materials (like Titanium), and stronger component confidence.
Custom Motorcycle Builds: When a stock axle design no longer fits a modified fork, custom wheel hub, or extended swingarm geometry.
What is a motorcycle axle? It is the central shaft that positions and supports the wheel assembly, working together with bearings, spacers, and the suspension to keep the wheel rotating smoothly and safely.
What is the difference between a front axle and a motorcycle rear axle? While both support the wheels, the rear axle is integrated with the drive system (chain/belt) and swingarm. Rear axle accuracy is especially critical for wheel alignment and power delivery.
Why does CNC Machining matter for motorcycle axles? CNC Machining guarantees dimensional consistency, perfect thread quality, and exacting surface finishes. For shaft-like parts, these factors are mandatory for safe assembly and high-speed stability.
Is every motorcycle rear wheel axle the same? No. Axles vary drastically by diameter, overall length, thread design, seating geometry, and the specific load expectations of the motorcycle type.
A standard catalog part isn't always enough. When your project requires a flawless fit, custom dimensions, stable tolerances, or application-specific engineering, precision manufacturing is the only answer.
Feigeer Tech is an industry expert in custom shaft and axle machining for the powersports sector. Our capabilities include:
Custom motorcycle front and rear axle production
High-precision shaft turning, threading, grooving, and finishing
Drawing-based OEM and aftermarket development
CNC Machining for both rapid prototyping and medium-to-large production runs
Don't compromise on the core of your motorcycle's handling. Send your CAD drawings, blueprints, or physical samples to the Feigeer Tech engineering team today, and let’s discuss how we can manufacture the perfect axle for your next project.
Contact Feigeer for a Custom CNC Quote Today
