Sourcing custom motor housings requires navigating complex manufacturing realities. A motor housing is a precision-engineered structural component that dictates bearing alignment, thermal management, and the overall lifespan of an electric motor.
This guide explores the technical challenges, precision tolerances, manufacturing processes, and Design for Manufacturability (DFM) strategies needed to optimize production and supply chains for 2026.
Machining a high-performance motor housing introduces specific mechanical hurdles. The success of the final assembly heavily relies on overcoming these three technical pain points

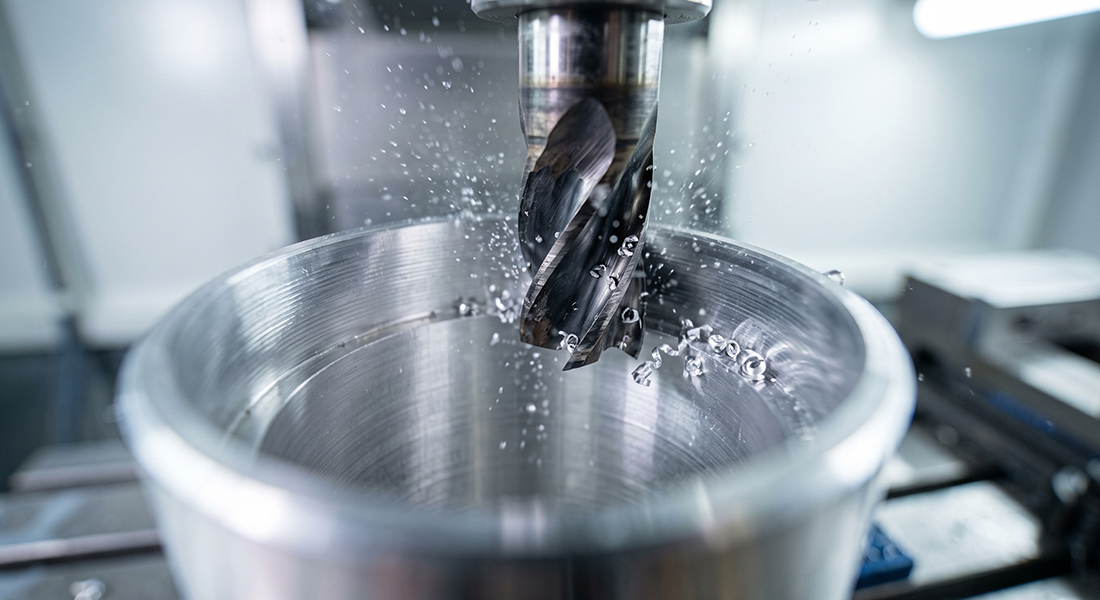

Modern motor housings utilize exceptionally thin walls to minimize total weight and maximize heat transfer. However, machining these enclosures introduces intense cutting forces and localized heat. This frequently leads to material chatter and dimensional warping once the component is released from the rigid CNC fixture, making tight tolerances difficult to hold.
The internal bores act as the critical alignment system for the entire rotating assembly. If the front and rear bearing seats and the main stator bore lack alignment, the rotor will suffer from an uneven air gap. Misalignment contributes to shaft runout, bearing loading, vibration, increased friction, and reduced motor efficiency. In severe cases, poor alignment may result in rotor-to-stator contact.
Raw materials, especially extruded or cast metals, contain internal residual stresses. When massive amounts of material are removed during rough machining, these stresses are released, causing the part to twist or warp unpredictably. Managing thermal stability through controlled machining strategies and stress relief is vital.
Selecting the correct raw material is a delicate balance of thermal conductivity, structural rigidity, machinability, and budget.
Material | Key Advantages | Typical Applications | Machining Considerations |
|---|---|---|---|
Lightweight, machinable, good thermal conductivity | Servo motors, automation | Good overall CNC machinability | |
6063 Aluminum | Excellent extrusion characteristics | Extruded motor housings | Best suited to consistent profiles |
7075 Aluminum | High strength-to-weight ratio | High-performance applications | Higher material cost, increased tool wear |
Carbon/Alloy Steel | High strength and rigidity | Heavy-duty motors | Higher cutting forces required |
Stainless Steel | Corrosion resistance | Food, medical, harsh environments | Higher machining difficulty, slower speeds |

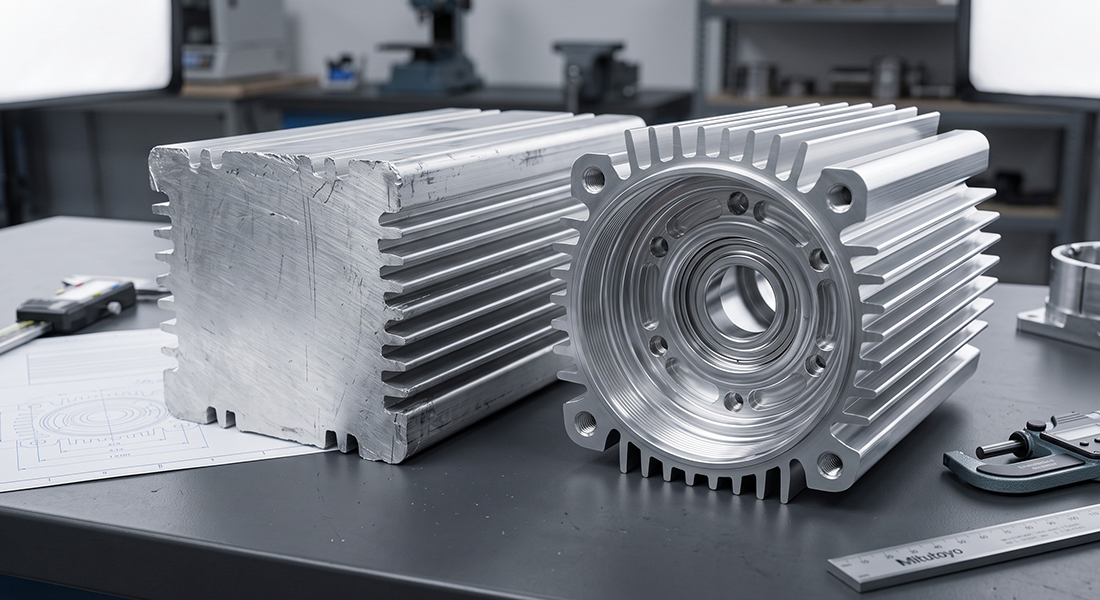

Machining a housing from a solid billet can generate significant material waste and long CNC cycle times. For cylindrical designs with a consistent profile, a 6061 aluminum extrusion can provide a more efficient starting blank. After cutting the extrusion to length, CNC machining can focus on critical features such as bores, flanges, and tapped holes, reducing both material waste and machining time.
A fundamental rule for engineering teams is: Not every feature requires the same tolerance. Over-tolerancing non-critical geometries unnecessarily increases production costs. Focus Geometric Dimensioning and Tolerancing (GD&T) strictly on functional areas:
Bearing Bore Tolerance: Must be strictly controlled to ensure proper bearing fit. Tolerances are determined based on bearing type, shaft arrangement, operating temperature, and dynamic load.
Stator Bore / Stator Seat: Designed for stator positioning. The required tolerance depends entirely on the specific stator design and intended assembly method (e.g., press fit vs. thermal shrink fit).
Bore Concentricity: Controls the geometric relationship between bearing bores and the stator bore. Maintaining the specified concentricity is required to ensure a uniform microscopic air gap between the stator and rotor.
Mounting Hole Position: The true position of mounting and tapped holes must be controlled to ensure the housing properly aligns with end bells, brackets, chassis, or gearboxes.
Achieving tight GD&T callouts requires a highly controlled manufacturing logic. A standard precision motor housing goes through this sequence:
Blank Preparation: Cutting the raw material—solid billet, custom extrusion, or raw casting—to the starting length.
Rough Machining: Rapid material removal to establish basic geometry, leaving a machining allowance on critical surfaces.
Stress Relief: Thermal aging of roughed parts to release internal material stresses and prevent warping.
Finish Machining: Precise turning and milling of external profiles, cooling fins, and non-critical mating surfaces.

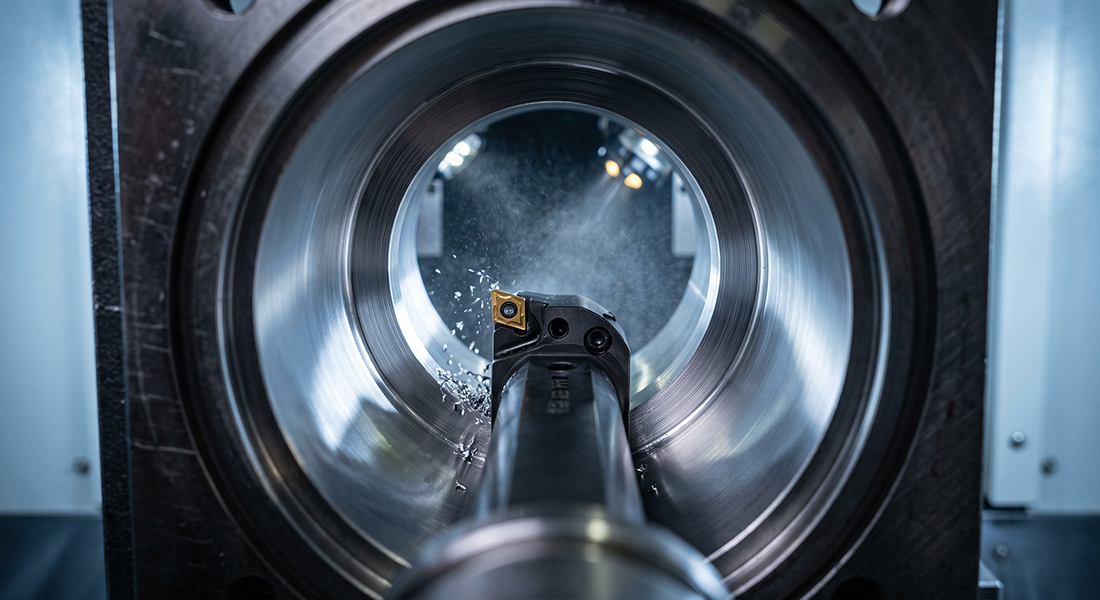

Precision Bore Machining: Critical bearing bores and stator seats are finish-machined using controlled setups and appropriate boring tools to achieve the specified dimensional and geometric tolerances.
Inspection: Verification using Coordinate Measuring Machines (CMM) and bore gauges to ensure GD&T compliance.
Surface Finishing: Treatments like anodizing, electroplating, or powder coating for corrosion resistance and aesthetics.
Optimizing your CAD model before manufacturing can significantly reduce costs. Keep these DFM principles in mind:
Wall Thickness: Maintain uniform wall thicknesses to prevent uneven thermal expansion and localized stress concentration.
Internal Radii: Add internal radii matching standard CNC end-mill sizes to eliminate the need for custom tooling.
Deep Cavities: Avoid excessively deep, narrow bores. High length-to-diameter ratios cause tool deflection and compromise precision.
Machining Allowance: When designing a casting or extrusion, leave an adequate machining allowance for the CNC process to achieve final tolerances.
Datum Design: Establish clear primary datums for repeatable fixturing and accurate CMM inspection setups.
Tolerance Allocation: Apply strict tolerances only to functional features (bearing seats, mating flanges). Loosen tolerances on aesthetic areas.
Thread Design: Avoid excessively deep, small-diameter threaded holes in hard-to-reach locations to reduce tap breakage risks.
Choosing the right overarching manufacturing method depends entirely on volume, geometry, and budget constraints.
Method | Best For | Main Advantage | Limitation |
|---|---|---|---|
Prototypes & low/medium volume | Ultimate flexibility & precision | Higher unit cost | |
Die Casting + CNC | High volume mass production | Low unit cost at scale | High upfront tooling cost |
Extrusion + CNC | Long consistent profiles | High material efficiency | Limited cross-sectional geometry |
Forging + CNC | High-strength parts | Superior mechanical properties | Higher tooling cost |
There is no universally best manufacturing process. The right choice depends on your housing geometry, annual volume, material properties, and target unit cost.
When evaluating a quote, true custom machining costs are driven by several variables:
Material: The type of metal and the initial blank size.
Machining Time: Geometric complexity directly impacts cycle time.
Number of Setups: Multiple machine setups increase labor time and alignment risks.
Tolerances: Pushing limits to extreme precision requires slower feed rates and rigorous inspection.
Quantity: Volume heavily dictates price. A five-piece prototype and a 500-piece production run will have completely different unit economics.
To receive an accurate quote from the Feigeer Tech engineering team, please provide:
3D CAD File: (STEP, IGES, or X_T) for CAM programming and DFM review.
2D Drawing: (PDF) detailing critical GD&T, bore tolerances, and threads.
Material Specification: Exact grade (e.g., 6061-T6 Aluminum).
Annual Quantity: Estimated batch sizes and yearly volume.
Surface Finish: Desired roughness (Ra) and final treatment.
What is the best material for a CNC motor housing?
For most commercial applications, 6061 aluminum offers the best balance of thermal conductivity, machinability, and cost. High-stress applications may require 7075 aluminum or steel.
Can aluminum motor housings be CNC machined?
Yes, [aluminum CNC machining] is highly recommended for prototypes and low-to-medium volume production, or to achieve tight bearing bore tolerances that casting cannot achieve alone.
What tolerance can CNC motor housing machining achieve?
CNC motor housing machining can achieve tight dimensional and geometric tolerances when the part, material, machine capability, tooling, and inspection method are properly controlled. Specific tolerances should be defined according to the function of each feature rather than applying a blanket tolerance to the entire housing.
How do you control bore concentricity?
Concentricity is maintained by machining critical front and rear bearing bores in a single setup whenever possible, utilizing precision fixturing, multi-axis machines, and rigorous CMM verification.
Is aluminum extrusion cheaper than CNC machining from a solid billet?
Yes. Starting with an aluminum extrusion profile that closely matches the final part reduces raw material waste and rough machining time, lowering overall costs for cylindrical designs.
A well-designed motor housing requires more than accurate dimensions. Material selection, bore alignment, wall thickness, tolerances, machining strategy, and inspection requirements all influence final performance and manufacturing cost.
