Precision Shaft Machining for Agricultural and Material Handling Equipment

In heavy-duty applications like agricultural tractors and warehouse forklifts, rotating metal components are subjected to extreme operating conditions. They must consistently transmit torque, support heavy rotating loads, and operate reliably under severe vibration and shock loading. A poorly machined shaft can quickly lead to premature bearing wear, excessive vibration, seal failure, or catastrophic drivetrain downtime.

For engineers and procurement teams, sourcing precision shafts requires a clear understanding of material properties, strict dimensional controls, and the appropriate manufacturing processes. Whether you need low-volume custom shaft machining or repeatable CNC shaft machining for OEM production, this guide outlines what you need to know about industrial shaft manufacturing.

Why Precision Shafts Are Critical in Heavy Equipment

The performance of a tractor or forklift often comes down to the integrity of its shaft components. These parts serve multiple critical functions within heavy machinery:

• Torque Transmission: Transferring rotational force from the engine or hydraulic motor to the wheels, tracks, or functional attachments.

• Bearing and Bushing Interfaces: Providing accurately machined seating surfaces for bearings and bushings, helping maintain proper fits, alignment, and controlled friction during operation.

• Rotational Alignment: Maintaining exact alignment between connected components to prevent eccentric loads that cause systemic wear.

• Fatigue Resistance: Withstanding repeated torsional and bending loads over the expected service life while minimizing the risk of fatigue-related failure.

Common Shaft Components Used in Tractors and Forklifts

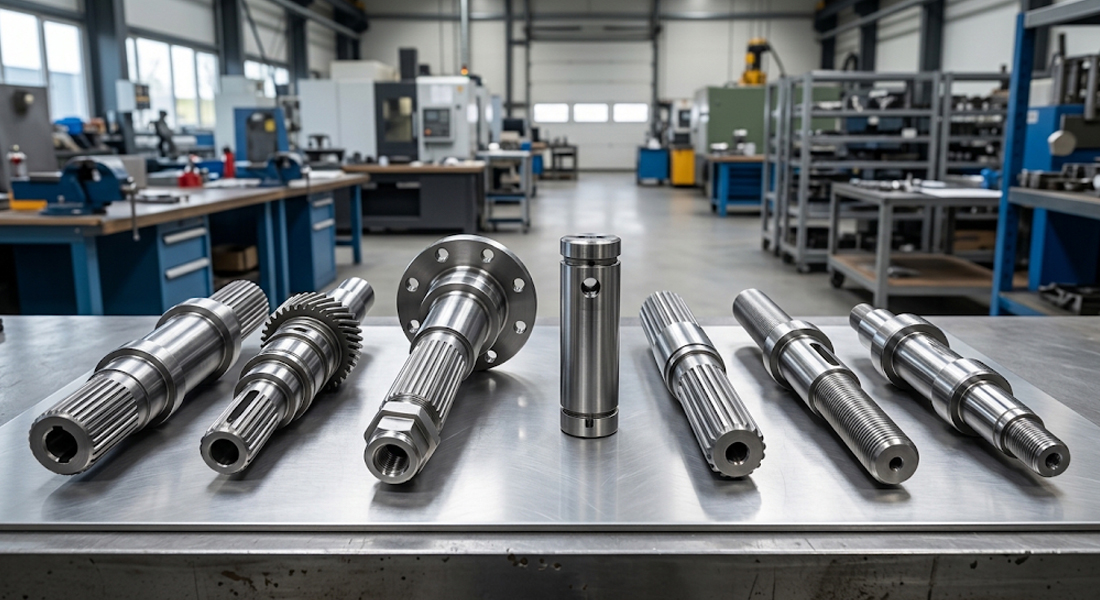

"Shaft" is a broad term. Heavy equipment relies on a diverse range of custom machined shafts, each with unique geometries and functional demands. Common applications include:

• Drive shafts and transmission shafts

• Axle shafts

• Hydraulic cylinder rods

• Pivot shafts and pin shafts

• Steering shafts

• Bearing shafts

• Splined shafts

Depending on the specific geometry and functional requirements of the component, manufacturing these items may require a combination of CNC turning, milling, drilling, grinding, broaching, or spline machining.

Key Manufacturing Requirements for Precision Shafts

Successful shaft manufacturing goes far beyond simply turning a cylinder of metal. Procurement and engineering teams must evaluate several critical manufacturing criteria

1. Material Selection and Heat Treatment

Material choice dictates the shaft's baseline strength. Carbon steels are common for general-purpose applications, but alloy steels (like 4140 or 4340) are often selected for shafts exposed to high torque, shock loading, and repeated fatigue cycles. Stainless steel may be required for agricultural shafts exposed to corrosive fertilizers or outdoor environments. Furthermore, case-hardening or induction hardening is frequently applied to wear-critical areas like bearing journals or splines while leaving the core ductile to absorb shock.

2. Dimensional Tolerances, Concentricity, and Runout

In precision shaft machining, a tight diameter tolerance is only part of the equation. A shaft can have the correct outer diameter but still fail if it is bowed. Precision requires strict control over:

• Diameter: To ensure proper interference or slip fits with bearings and gears.

• Concentricity & Runout: To maintain alignment between critical shaft features and minimize eccentricity during rotation.

• Straightness: Critical for long drive shafts or hydraulic rods.

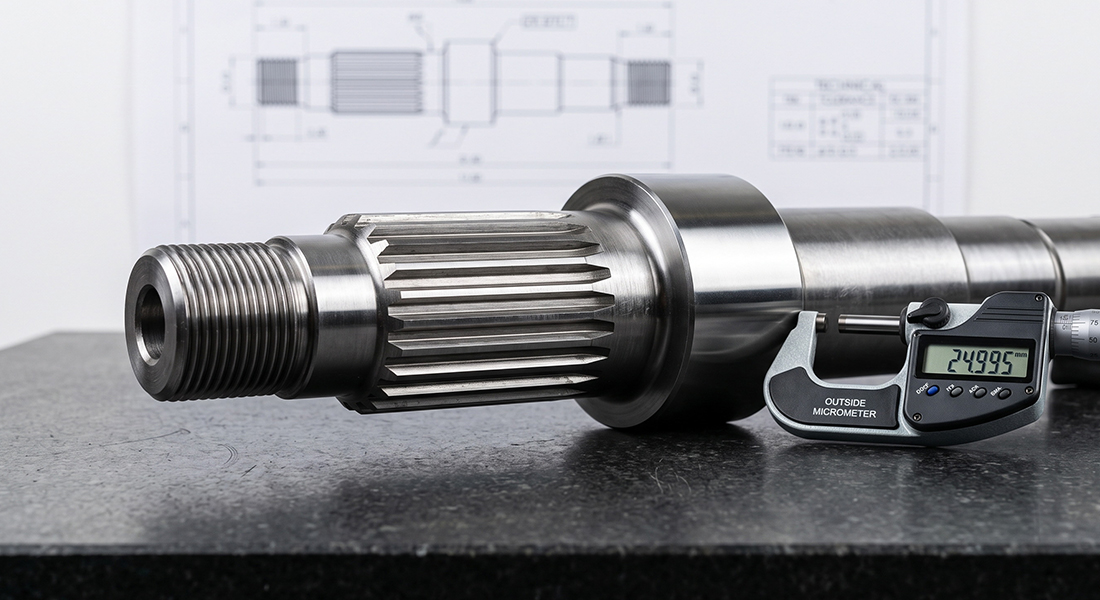

3. Shaft Geometry and Critical Functional Features

Precision shafts often incorporate multiple functional features within a single component. Because a shaft is rarely a simple cylinder, each feature may require different dimensional tolerances, surface finishes, or machining operations. Critical zones often include:

• Bearing journals

• Shoulders and steps

• Keyways

• Threads

• Splines

• Retaining grooves

• Seal surfaces

• Cross-drilled holes

4. Surface Finish

Surface finish requirements often vary significantly across a single shaft. While the main body of a transmission shaft might tolerate a standard machined finish, bearing seats, seal surfaces, and sliding interfaces typically require highly controlled finishes to prevent the rapid wear of mating seals and bushings.

CNC Machining Processes Used for Custom Shafts

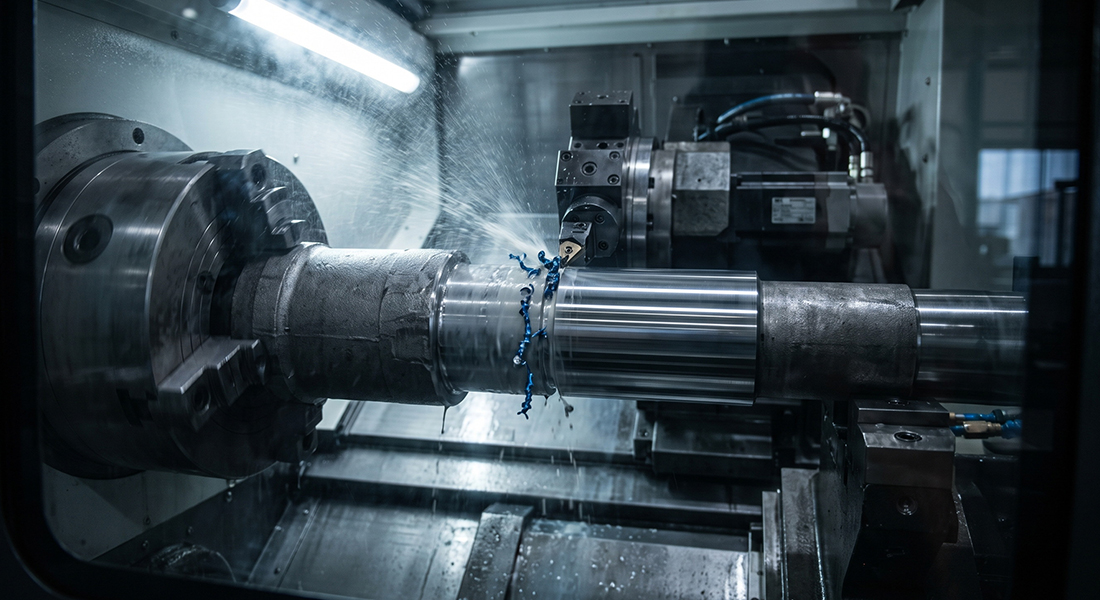

Most precision turned shafts begin with CNC turning, which establishes the primary diameters, shoulders, and axial geometry. Additional operations such as milling, drilling, threading, grinding, or spline machining may then be used to complete functional features.

How to Choose the Right Manufacturing Process for a Custom Shaft

Understanding the relationship between a shaft's design features and the required machining operations is essential for optimizing procurement.

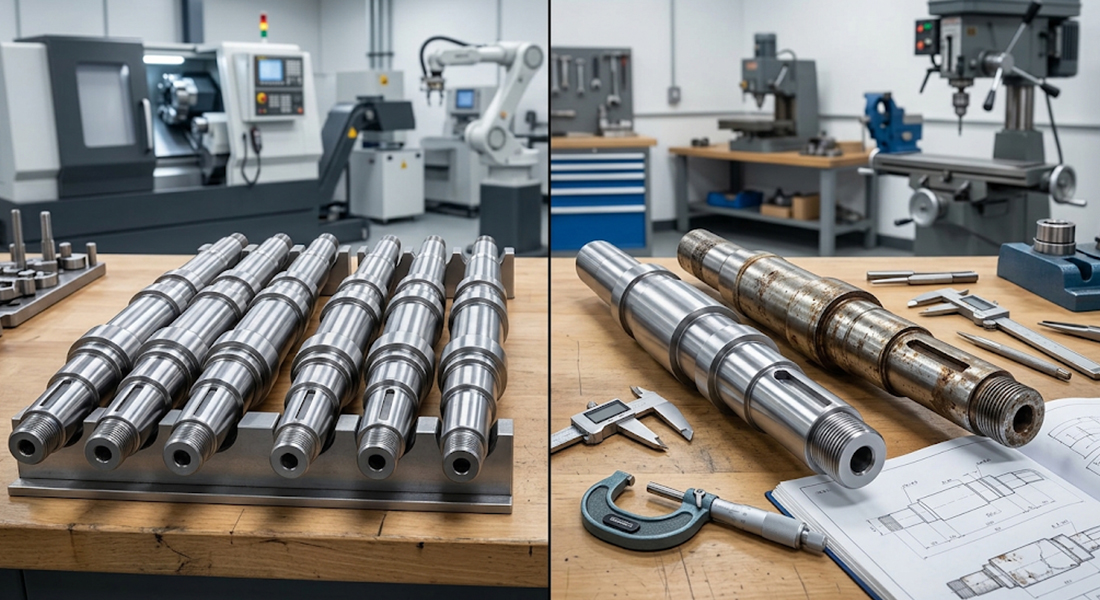

OEM Shaft Production vs. Replacement Shaft Manufacturing

The approach to manufacturing changes depending on where the shaft is in the equipment's lifecycle.

OEM Shaft Production

For new equipment builds, the focus is on process validation, batch-to-batch consistency, and cost optimization. OEM shaft components benefit from established 2D/3D CAD models, stable production volumes, and standardized material specifications. Manufacturers can optimize CNC programming and invest in dedicated workholding to drive down the per-unit cost over a production run.

Replacement / Aftermarket Shafts

When a heavy-duty forklift or old tractor breaks down, the original OEM parts may be obsolete, or lead times may be unacceptably long. Sourcing replacement shafts often involves reverse engineering an existing, worn-out sample. A replacement shaft must not only match the original dimensions but also meet the functional requirements of the mating components. Critical considerations may include bearing fits, spline engagement, shoulder locations, material hardness, and surface finish at wear interfaces.

What Should You Provide When Ordering Custom Shafts?

To ensure accurate quoting and manufacturing, procurement teams should aim to provide as much of the following information as possible:

• 2D engineering drawings (with clear GD&T) or 3D CAD files

• Specific material grades and heat treatment requirements (e.g., case hardness depth)

• Critical diameter tolerances and runout limits

• Surface finish (Ra) requirements for bearing and seal zones

• Thread and spline details (e.g., standard, pitch, pressure angle)

• Expected annual volume (prototype vs. production requirements)

If a complete drawing is unavailable for a repair project, providing a physical sample, detailed dimensional measurements, photos, and information about the shaft’s operating environment can help the manufacturing partner evaluate the project and engineer a solution.

How Feigeer Tech Supports Custom Shaft Manufacturing

At Feigeer Tech, we understand that reliable heavy equipment depends on the precise execution of its rotating components. We evaluate each shaft project based on its geometry, material, tolerance requirements, and production volume to determine the appropriate machining and finishing approach. Depending on the project, this may include CNC turning, secondary milling or drilling, heat treatment coordination, and precision finishing.

Need custom shaft machining for agricultural, forklift, or industrial equipment? Send Feigeer Tech your shaft drawings, material requirements, or sample specifications. Our engineering team can help evaluate the appropriate machining process, tolerances, and production approach for your application.
