A motor housing is the outer structural enclosure of an electric motor. It protects the motor's internal components, supports the bearings, helps dissipate heat, and maintains the alignment required for reliable operation.
Beyond acting as a basic metal shell, the housing is a precision-engineered component that fundamentally impacts the motor's mechanical performance, thermal management, and long-term durability.
This overview outlines the core functions of a motor housing, the primary types and materials used in manufacturing, and how it interacts with the complete motor assembly.
A motor housing is the outer structural enclosure of an electric motor. It protects the motor's internal components, supports the bearings, helps dissipate heat, and maintains the alignment required for reliable operation.
Beyond acting as a basic metal shell, the housing is a precision-engineered component that fundamentally impacts the motor's mechanical performance, thermal management, and long-term durability.
This overview outlines the core functions of a motor housing, the primary types and materials used in custom manufacturing, and how it interacts with the complete motor assembly.
The housing is not simply a bucket to hold parts; it performs several essential functions simultaneously:
Protects internal components: It shields internal windings, magnets, electronics, and other motor components from moisture, dust, chemicals, and physical impact.

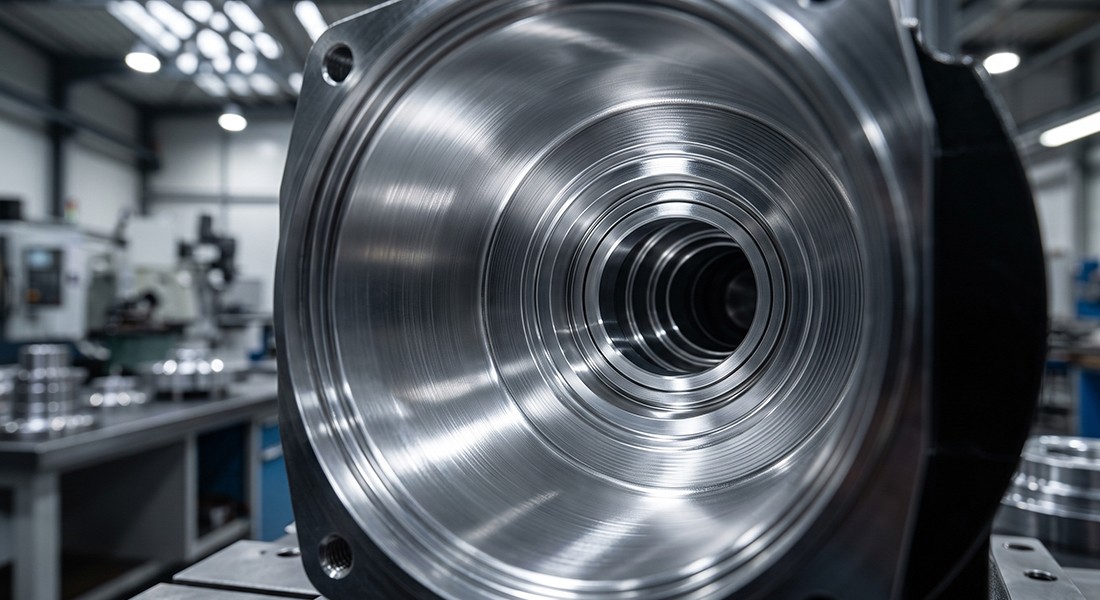

Supports bearings: It features precision-machined bearing bores (seats) on both ends that firmly hold the bearings in place, which in turn support the entire rotating assembly.
Positions the rotor and stator: It ensures the stator (the stationary electromagnetic assembly) and the rotor (the rotating assembly) remain perfectly aligned with a consistent, microscopic air gap between them.
Helps with heat dissipation: Electric motors generate significant heat. The housing acts as a giant heatsink, drawing heat away from the internal components and transferring it to the surrounding air.
Provides structural rigidity: It prevents the motor from twisting or deforming under heavy operational torque loads.
Integrates with mounting systems: It provides flanges, feet, or tapped holes to securely mount the motor to a vehicle chassis, pump, or industrial machine.
Motor housings come in various forms, typically categorized by their shape or manufacturing method to suit different performance and production requirements:
Cylindrical Motor Housings: The most standard shape, often turned from solid metal billets or thick-walled tubing. They are highly versatile and easy to machine.

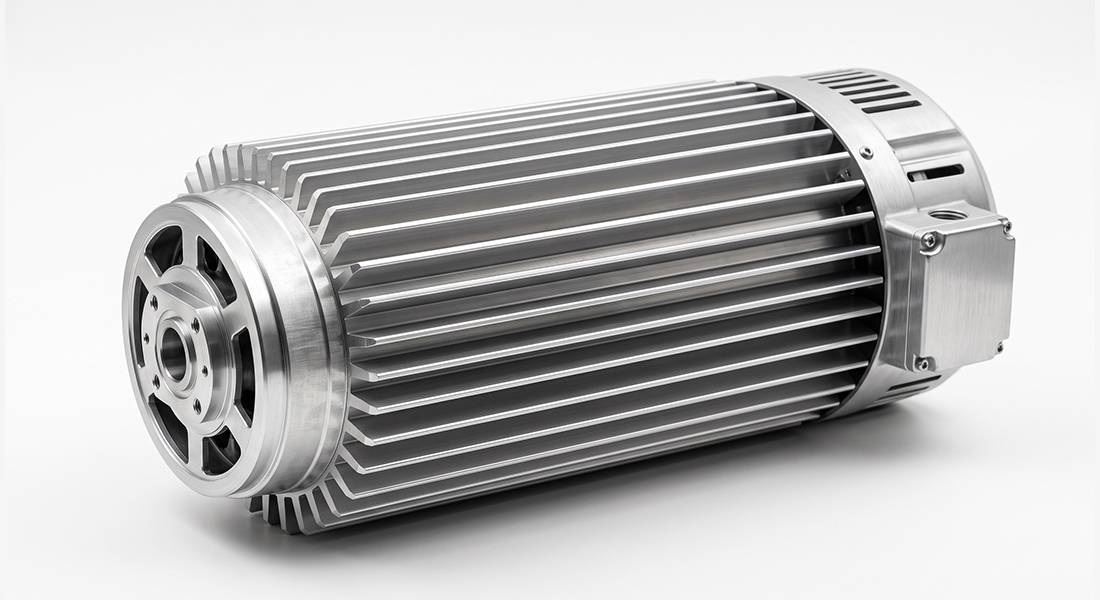

Extruded Aluminum Motor Housings: Made by pushing aluminum through a die to create a long, continuous profile. These often feature built-in external cooling fins running the length of the body, making them highly efficient for heat dissipation.
Cast Motor Housings: Created via sand casting or die casting by pouring molten metal into a mold. They are common for mass-produced consumer motors or complex, heavy-duty industrial designs.
CNC Machined Motor Housings: Custom housings carved directly from a solid block of metal. They are favored for prototypes, low-volume production runs, and applications requiring extremely tight tolerances.
Integrated Motor Housings: Specialized designs where the housing is built directly into the structural casing of the machine it powers, such as inside a robotic joint or a fluid pump body.
Choosing the right motor housing material depends heavily on the motor's operating environment, structural requirements, weight limits, and cooling needs.
Here is a quick breakdown of how engineers select the appropriate material:
Material | Main Advantages | Common Applications |
|---|---|---|
Aluminum | Lightweight, excellent thermal conductivity, highly machinable | Servo motors, automation, EVs, drones |
Steel | High structural strength and rigidity | Industrial motors, high-torque applications |
Stainless Steel | Exceptional corrosion resistance, easy to clean/sterilize | Food processing, medical equipment, harsh environments |
Cast Iron | Extreme rigidity, durability, vibration resistance | Heavy-duty industrial machinery, low-speed motors |
To understand the true value of the housing, you must understand how it interacts with the rest of the motor system:
The Stator is press-fit or bolted directly into the main internal cavity of the Housing.
The Rotor spins inside the stator.
The Shaft passes straight through the center of the rotor.
The Bearings sit on both ends of the shaft.
The Housing (and its end bells) securely holds those bearings.
If the housing is manufactured poorly, the bearings will be misaligned. The motor housing and shaft must work together within a controlled alignment system. If they do not, the shaft will vibrate, increasing friction and bearing wear. In severe cases, poor alignment can even result in rotor-to-stator contact.
Learn More: Discover how critical rotational components are manufactured in our guide to precision shaft machining.
Because electric motors power the modern world, specialized motor housings are found across almost every major industry:
Industrial Motors: Driving heavy machinery, compressors, and conveyor systems.
Servo Motors & Automation: Providing exact positioning for CNC machines, packaging lines, and automated assembly equipment.
Electric Vehicles (EVs): High-performance, liquid-cooled housings for traction motors.
Robotics: Ultra-compact, lightweight housings for robotic arms and joint actuators.
Pumps & HVAC: Waterproof and corrosion-resistant casings for submersible pumps, blowers, and fans.
Medical Equipment: Easily sterilizable, non-corrosive housings for surgical tools and scanning machines.
What is the purpose of a motor housing?
A motor housing provides structural support for the motor's internal components, aligns the bearings, dissipates heat generated by the electromagnetic coils, and protects the motor from environmental damage such as dust and moisture.
What materials are commonly used for motor housings?
The most common materials are aluminum, steel, stainless steel, and cast iron. Aluminum is widely used due to its excellent thermal conductivity and lightweight properties, while stainless steel is preferred for corrosive environments.
Are motor housings always made of aluminum?
No. While aluminum is incredibly popular for servo and EV motors, heavy industrial motors often use cast iron or steel for maximum rigidity and vibration dampening. Stainless steel is used in food and medical applications.
What is the difference between a motor housing and a motor enclosure?
In general engineering, the terms are used interchangeably. However, "housing" usually emphasizes the structural frame that holds the components together, while "enclosure" often highlights the protective aspect, such as an IP67-rated waterproof enclosure.
Can motor housings be CNC machined?
Yes. CNC machining is the standard manufacturing method for high-precision prototypes and low-volume production. Even mass-produced cast or extruded housings require secondary CNC machining to finish tight-tolerance bearing bores.
What type of motor housing is best for high-temperature applications?
Extruded aluminum motor housings are highly effective for heat management. Aluminum has excellent thermal conductivity, and the extrusion process allows for the creation of continuous external cooling fins that increase the surface area to dissipate heat quickly.
Whether your project requires prototyping from solid aluminum billets or secondary machining on cast/extruded shells, achieving tight bore tolerances and structural stability is critical.

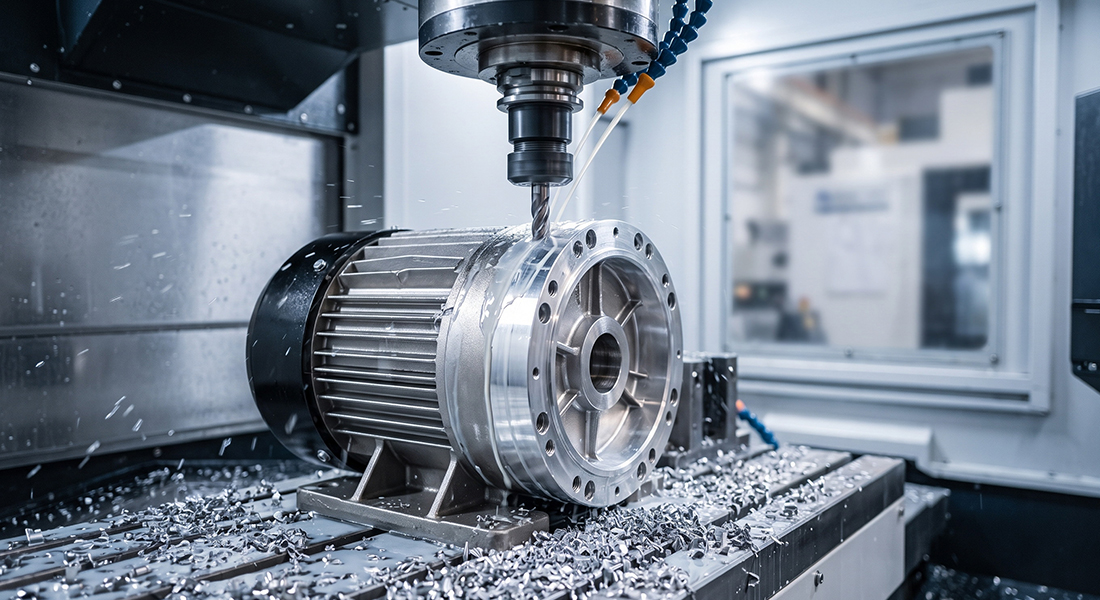

CNC machining is particularly useful for prototypes, low-volume production, and motor housings that require tighter dimensional control. It is also commonly used as a secondary process after casting or extrusion to machine critical features such as bearing bores and mounting holes.
Looking to manufacture a custom motor enclosure?
For a detailed discussion of materials, tolerances, thin-wall machining, bore concentricity, and DFM, see our [Custom Motor Housing Machining Guide].
If you have a specific design in development, feel free to contact the Feigeer Tech engineering team to evaluate tolerances, materials, and machining feasibility.
