Commercial espresso machines and high-end coffee grinders are precision-driven instruments. Commercial espresso machines operate under high brewing pressure and repeated thermal cycling, while professional coffee grinders handle high-speed rotation, continuous torque, and thousands of grinding cycles. Both utilize precision-machined components to maintain consistent performance over long operating periods.
For OEMs designing commercial coffee equipment, the reliability of the machine often depends on the quality of its custom metal parts. From the close-tolerance shafts inside fluid valves to the cutting mechanisms in grinders, choosing an appropriate manufacturing process can be important for supporting long-term performance.

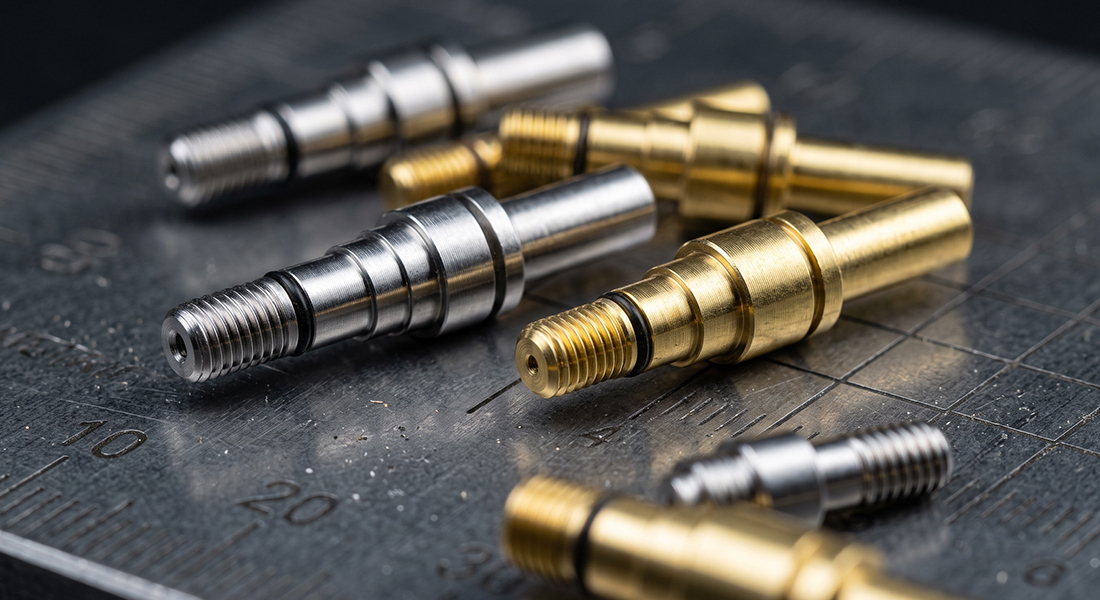

While the external aesthetics of a coffee machine often draw the most attention, the internal fluid control system requires careful precision machining. A typical commercial machine contains numerous miniature shafts, valve spools, and control pins that manage the flow of pressurized water and steam.
Steam Wand Valve Shafts: The rotary valves that baristas use to control steam wands rely on machined internal shafts. These components often require complex geometries, including stepped diameters and accurately cut O-ring grooves, to help maintain a watertight seal.
Solenoid Valve Cores: Automated brewing cycles are controlled by electromagnetic solenoid valves. The internal sliding spools are precision-machined shafts that are typically designed to slide with controlled friction and seat accurately to help manage high-pressure water. (Note: Because espresso machines involve high temperatures and pressure, replacement of these internal fluid components should generally be performed according to the equipment manufacturer's specific service procedures.)
Rotary Pump Drive Shafts: The pumps that generate brewing pressure utilize custom shafts to transfer torque from the electric motor to the pump impeller, often requiring high concentricity to reduce vibration.
An espresso machine can only extract what the grinder provides. The consistency of coffee grounds depends heavily on the rotational stability of the cutting assembly. Many commercial coffee grinders use precision-machined components where controlling runout, diameter, and alignment can contribute to stable grinding performance.

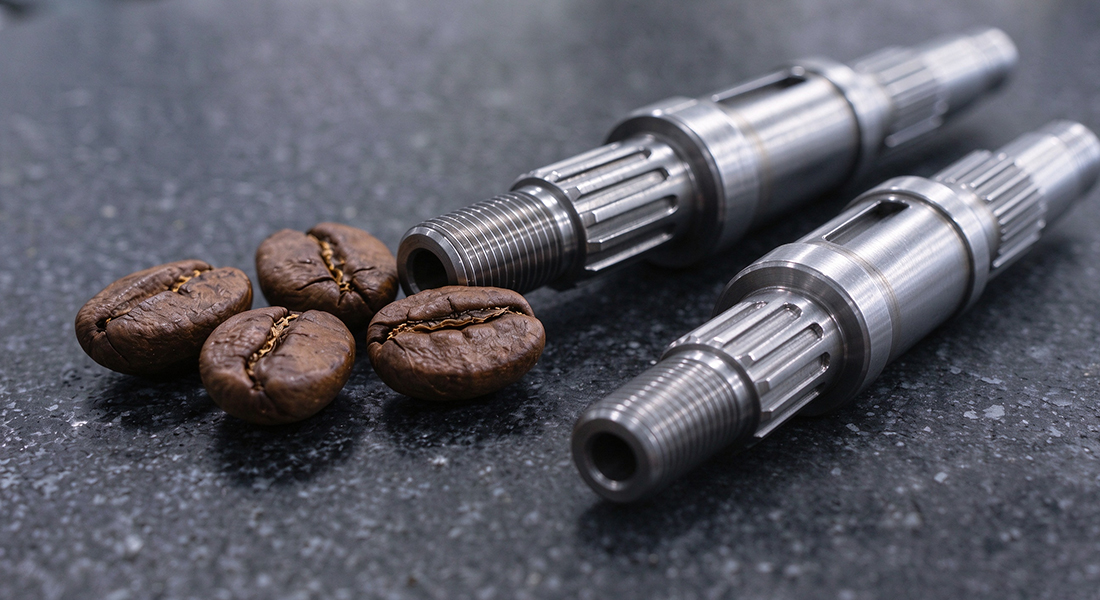

The rotor or drive shaft is one of the more critical components inside a commercial coffee grinder. It typically requires high concentricity and stable rotation to keep the grinding burrs properly aligned. Excessive runout can affect burr alignment and may contribute to variations in grinding performance. CNC turning is well suited for producing coffee grinder shafts, burr shafts, and other cylindrical components that require controlled diameters and consistent repeatability.

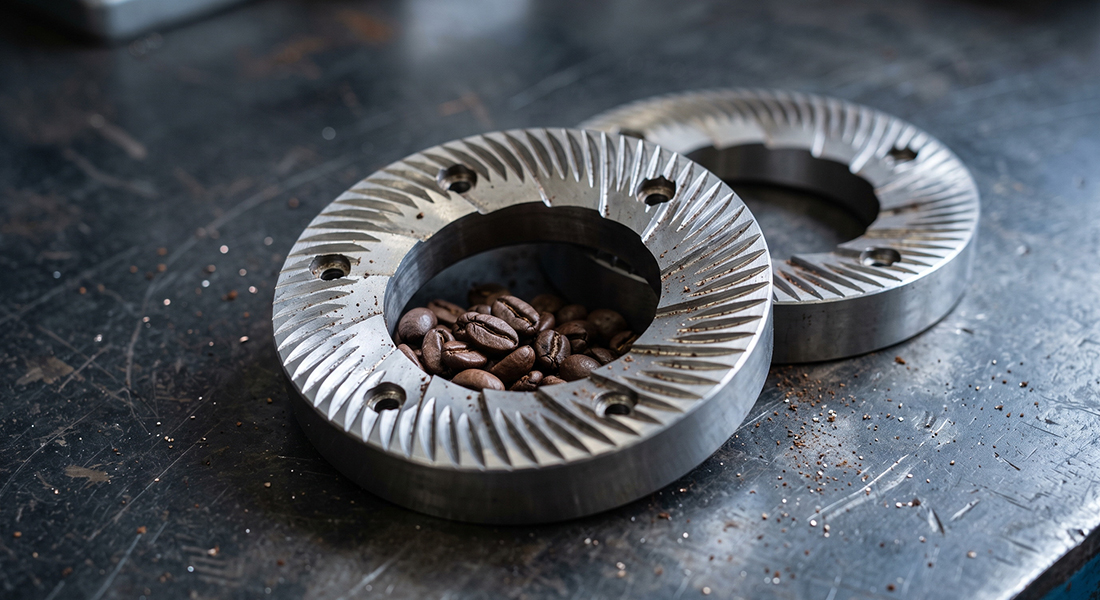

Coffee grinder components also see ongoing aftermarket demand. Burrs gradually wear with repeated use, while shafts, carriers, and other mechanical components may eventually require replacement during equipment maintenance or refurbishment.
For equipment distributors, repair centers, and coffee equipment manufacturers, replacement parts typically need to match the original component dimensions and mounting interfaces accurately. CNC machining allows manufacturers to reproduce coffee grinder shafts, burr carriers, and other precision components according to original drawings, samples, or measured specifications, which can help restore grinding performance for end-users.
Coffee grinder shafts can eventually require replacement because of wear, damage, bearing issues, or other mechanical problems. The replacement process varies by grinder design, but the basic procedure generally involves removing the burr assembly, accessing the shaft and bearing arrangement, replacing the worn component, and checking the assembly before returning the grinder to service.
Before starting, the grinder should be disconnected from the power supply and cleaned of loose coffee grounds. It is also useful to document the original component orientation and take note of the position of washers, spacers, bearings, and retaining components during disassembly. These details can vary between grinder designs and can affect the final shaft position.
During installation, the replacement shaft should be positioned according to the original assembly design. Bearings, spacers, and retaining components should be installed in their original locations where applicable. After assembly, the shaft can be checked for smooth rotation and excessive play before the burr assembly is reinstalled.
For discontinued or hard-to-source grinder shafts, CNC machining can provide a practical option for producing replacement components from an existing sample or technical drawing. Depending on the part design, a manufacturer may be able to reproduce the shaft geometry, bearing seats, threads, grooves, and other critical features required for the assembly.

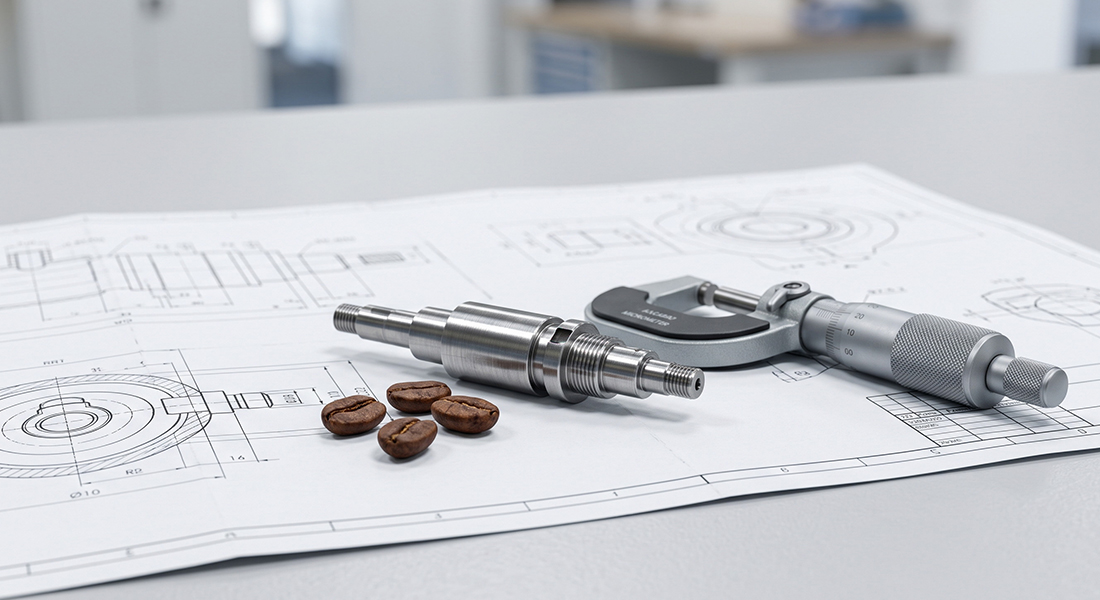

When sourcing a replacement coffee grinder shaft, matching the overall length alone may not be sufficient. To achieve a suitable fit and reliable operation, several engineering features may need to match the original component or drawing:
Shaft Diameter: The shaft diameter and specified tolerances should be compatible with the mating bearings or carriers to help avoid excessive play or binding.
Overall Length: The length can directly affect the positioning of the burrs and other rotational components.
Bearing Seats: The specific locations and diameters where bearings sit must be accurately machined.
Threads and Keyways: Connection points for nuts, gears, or burr carriers must match the existing assembly hardware.
Runout and Alignment: The shaft can be checked for straightness and runout, as excessive runout may affect burr alignment and grinding consistency.
Material and Hardness: If the original shaft was designed for high torque or wear resistance, the replacement material and heat treatment should meet similar specifications.
When manufacturing internal fluid components and grinder assemblies, engineers typically select materials based on corrosion resistance, hardness, and thermal stability.
Lead-Free Brass and Eco-Brass: Traditionally used for boilers, group heads, and valve bodies due to its machinability and thermal retention.
Stainless Steel: 304 and 316L stainless steels are often selected for components exposed to water, steam, or cleaning environments because of their corrosion resistance and durability.
Hardened Tool Steels: Selected for applications requiring high hardness and wear resistance, including certain coffee grinder burr designs and other wear-intensive components.
Manufacturing small shafts and spools for fluid control often requires strict attention to detail. In an espresso machine, small dimensional deviations on a valve shaft can contribute to slow internal leaks.
When sourcing precision turned parts, buyers typically focus on:
Surface Finish (Ra): The areas of a shaft that interact with O-rings require controlled surface finishes. A rough turning mark can act as a micro-channel for pressurized steam or water to escape.
O-Ring Groove Geometry: The width, depth, and corner radii of retaining grooves typically need to be machined accurately to help the O-ring compress correctly and reduce the risk of pinching.
Deburring: When machining close-tolerance components, even a small burr left on the edge of a fluid channel can potentially scratch a seal during assembly.
Different coffee equipment components require different manufacturing processes. CNC turning and milling are often ideal for shafts, valve components, spools, and other close-tolerance parts, while metal stamping can be a more efficient method for high-volume sheet metal components such as panels, brackets, and drip trays.
For OEM production, process selection may also depend on part geometry, material thickness, order volume, tooling requirements, and dimensional requirements. CNC machining can be useful when a component requires flexible production or complex features, while stamping may become more practical for repeat production of formed sheet metal parts. In some coffee equipment designs, both processes can be used within the same product, with machined components supporting internal mechanisms and stamped parts forming the external structure.
High-tonnage stamping presses are frequently used to form drip trays, grates, side panels, and backplates. Often featuring brushed or polished finishes, these panels are generally stamped with care to minimize surface scratches or tooling marks.
Can coffee grinder shafts be made from samples?
Yes. Depending on the component condition and available dimensions, a replacement coffee grinder shaft may be manufactured from an existing sample, technical drawing, or CAD file.
What information is needed to manufacture a replacement grinder shaft?
Useful information can include the shaft dimensions, material, critical tolerances, bearing-seat dimensions, threads, keyways, surface finish, and required quantity.
Can Feigeer Tech manufacture custom espresso machine parts?
Feigeer Tech can support the production of various custom metal components for coffee equipment, including precision shafts, valve components, grinder parts, and stamped sheet metal components, based on drawings or samples.
What materials are commonly used for coffee equipment parts?
Material selection depends on the component's operating environment and performance requirements. Common options may include stainless steel, brass, and hardened steels.
Coffee equipment manufacturers may begin with a prototype, physical sample, or preliminary CAD model before moving into repeat production. CNC machining can provide a practical option for producing small batches during product development and scaling to larger production quantities once the design has been validated.
From prototype components to repeat production, Feigeer Tech helps coffee equipment OEMs and aftermarket distributors manufacture precision shafts, valve components, grinder parts, and stamped sheet metal components to drawing or sample. Our team can review your material requirements, tolerances, and production volumes to recommend a suitable manufacturing process.
