When sending a CAD file to a CNC supplier, one of the first questions is usually: How much will this part cost?
CNC machining costs are rarely determined by part size alone. Material, geometry, tolerances, production volume, machining time, and secondary processes can all affect the final price.
This 2026 guide explains the main factors behind CNC machining cost and practical DFM approaches that can help OEM engineers and procurement teams control unnecessary manufacturing expenses.
CNC pricing is influenced by the total manufacturing effort required to produce a finished part. Common cost factors include:
Material: Raw material price and machinability affect both material cost and cutting time.
Machining Time: Longer cycle times generally increase machine and labor costs.
Complexity: Multi-axis machining, deep pockets, and multiple setups can increase programming and production time.
Tolerances: Tighter tolerances may require slower machining, additional finishing passes, and more inspection.
Production Volume: Setup and programming costs can be distributed across more parts as production volume increases.

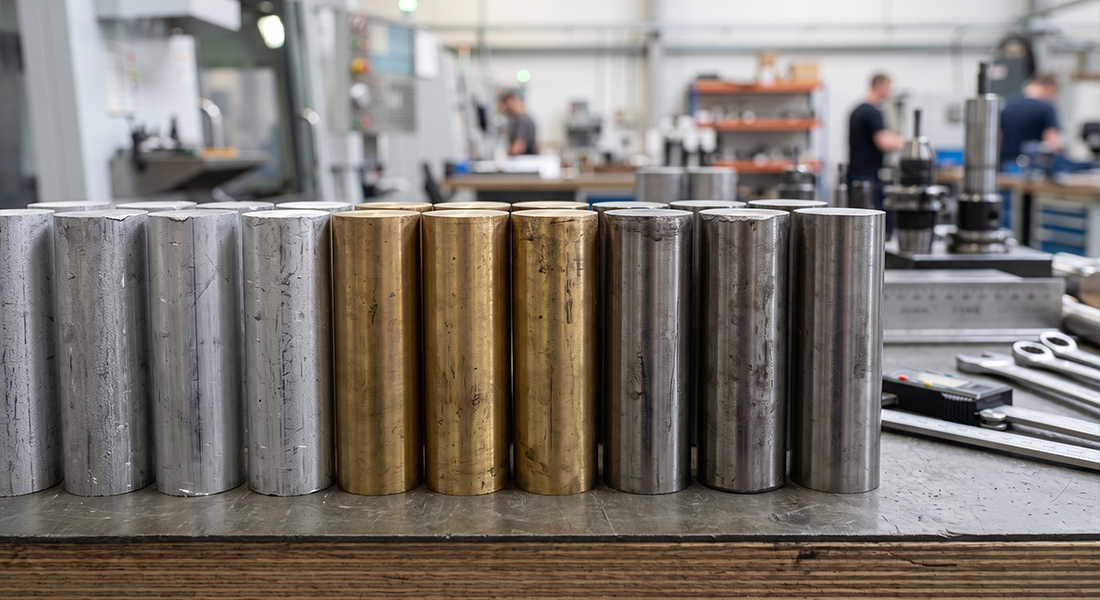

Material selection dictates your baseline quote. While raw material prices matter, its machinability is what truly impacts CNC cycle times. When selecting among various CNC machining materials, engineers must balance performance requirements against cutting efficiency.
Material | Machinability & Cost Considerations | Typical OEM Applications |
|---|---|---|
Aluminum 6061 | Highly machinable and generally economical for production | Motor housings, brackets, robotics |
Aluminum 7075 | Good machinability but higher material cost than 6061 | Aerospace, high-strength components |
Brass / Copper | Brass machines easily; copper may require additional process considerations | Electrical contacts, valves |
Carbon & Alloy Steel | Moderate machinability; some grades may require heat treatment | Shafts, gears, drive components |
Stainless Steel | Generally slower to machine and may require rigid setups | Medical, food-processing equipment |
Titanium | More difficult to machine and typically requires specialized tooling | Aerospace, high-performance components |
The geometry of your component dictates programming and repositioning time, while technical limits govern precision.
The Setup Penalty: Complex parts requiring multiple repositionings add manual labor. Design parts to be machined from a single direction whenever possible to streamline setup.
The Cost of Precision: Not every feature needs a tight limit. When specifying CNC machining tolerances, clearly separate critical features (e.g., bearing bores) from non-critical features (e.g., cosmetic exteriors) on your 2D drawings. Excessively strict limits across the entire part slow down cutting speeds and demand detailed CMM inspections.
Setup and CAM programming are fixed costs. For a prototype, these make up the bulk of the price. As volume scales, these fixed costs are distributed, lowering the per-unit price.
When evaluating different CNC machining services, understanding how batch size impacts unit pricing helps determine the most economical manufacturing route:
Manufacturing Process | Tooling Investment | Ideal Production Volume |
|---|---|---|
Low | Prototypes and low-volume parts | |
CNC Machining | Low to Medium | Prototypes, low-to-medium volume production |
Die Casting | High | Medium-to-high volume metal parts |
Aluminum Extrusion | Medium | Long profiles and repeated cross-sections |
To illustrate how these variables interact, consider two aluminum parts with the exact same overall dimensions:
Feature | Part A (Lower Cost) | Part B (Higher Cost) |
|---|---|---|
Geometry | Simple block, 4 through-holes | Deep internal pockets, thin walls |
Tolerances | Standard commercial limits | Extremely tight internal bores |
Finishing | Basic deburring | Hard anodizing + CMM Inspection report |
Volume | 500 pieces | 50 pieces |
Despite having the same physical size, Part B costs significantly more per unit due to complex setups, strict precision requirements, secondary processing, and a smaller batch size.
Applying proper CNC machining DFM (Design for Manufacturability) principles during the early design phase can yield significant savings without altering part function:

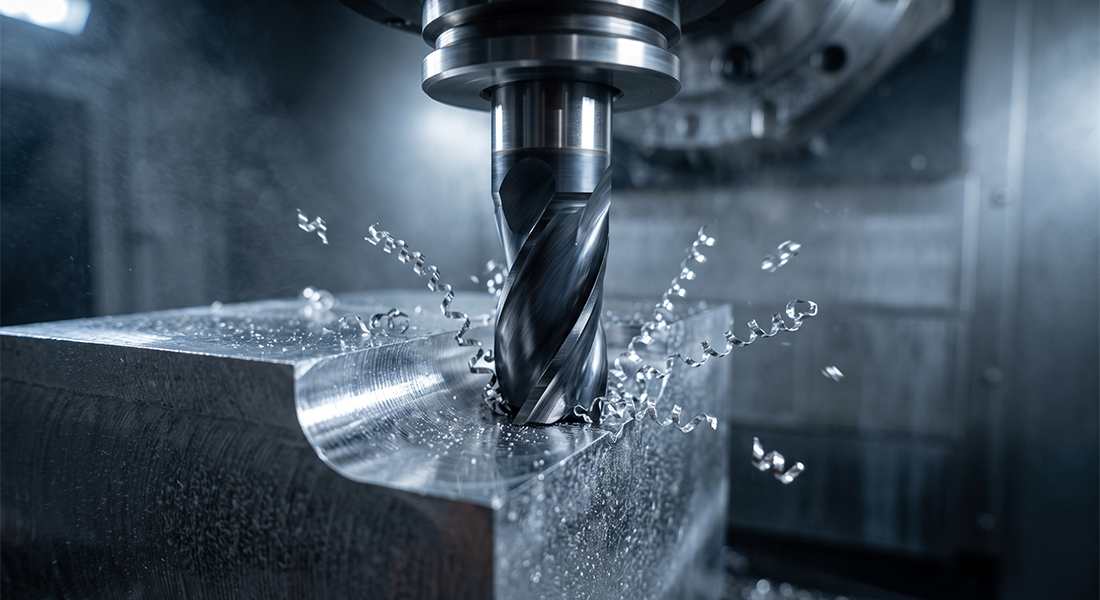

Use Standard Tool Sizes: Design internal corner radii to match standard end mills, avoiding custom tooling.
Limit Deep Pockets: Deep cavities cause tool deflection and vibration. Reduce depth if not functionally required.
Simplify Aesthetics: Decorative grooves and complex 3D surfaces heavily increase cycle times.
Consolidate Setups: Design the part so most features can be machined from a single orientation.
Aluminum 6061 is generally the most cost-effective metal due to its low raw cost and excellent machinability. For engineering plastics, POM (Delrin) is highly stable and economical to machine.
They require a controlled machining environment: slower feed rates, multiple light passes, frequent tool replacements, and rigorous temperature-controlled CMM inspections.
It depends on several factors, including part size, material, geometry, quantity, machining time, post-processing, and required tolerances. For small prototypes, 3D printing may have a lower initial cost because it requires little or no tooling. As production quantities increase, CNC machining becomes more competitive, particularly for metal parts requiring high structural strength or dimensional accuracy.
Yes. A standard "as-machined" finish is the most economical. Ultra-smooth polished finishes or secondary chemical treatments add per-piece production costs.
To receive a more accurate CNC machining quote, provide a 3D CAD model, 2D drawing, material specification, surface finish requirements, critical tolerances, and expected production quantity. Additional information such as heat treatment, coating, inspection requirements, and assembly specifications may also affect the quotation.
For an accurate CNC machining quotation, an RFQ should normally include a 3D CAD model, 2D engineering drawing, material specification, surface finish requirements, critical tolerances, and expected production quantity.
Feigeer Tech provides Custom CNC Machining Services for global OEM clients. Whether your project requires Precision CNC Machining, Custom Shafts, Motor Housings, or other complex metal components, our engineering team reviews supplied drawings to offer practical manufacturing feedback before production begins.
Submit your CAD files and project requirements to discuss your next custom manufacturing project with Feigeer Tech.
