When engineers design custom plastic parts, they often face a critical manufacturing choice: 3D Printing (Additive) or CNC Machining (Subtractive)?
Both are highly capable, industrial-grade technologies, but they are engineered to solve entirely different problems. While 3D printing offers unmatched geometric freedom and rapid iteration speeds, CNC machining delivers the tight tolerances and isotropic strength required for high-stress applications.
Based on thousands of projects reviewed by the engineering team at Feigeer Tech, choosing the right method depends entirely on your part’s geometry, mechanical requirements, and production volume. This guide breaks down the critical differences to help you make the smartest sourcing decision.
The core difference between these two technologies dictates the final structural properties of your plastic part.
3D Printed Plastics (Additive): Processes like FDM, SLA, or SLS build parts layer by layer. This allows for incredible design flexibility, including internal channels and lightweight lattice structures. Because parts are built in layers, they exhibit anisotropic properties (meaning strength can vary slightly depending on the build direction, particularly along the Z-axis).

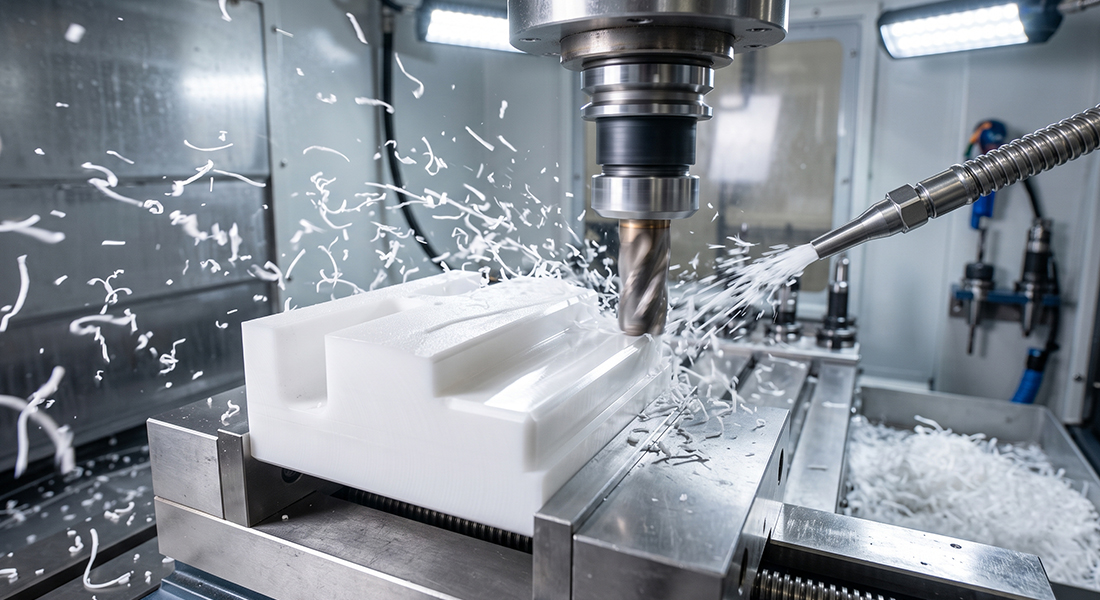

CNC Machined Plastics (Subtractive): CNC milling and turning start with a solid, extruded block or rod of engineering-grade plastic, carving away material to reveal the final shape. The resulting part has 100% isotropic strength (uniform strength in all directions) and zero internal porosity, making it ideal for heavy load-bearing applications.

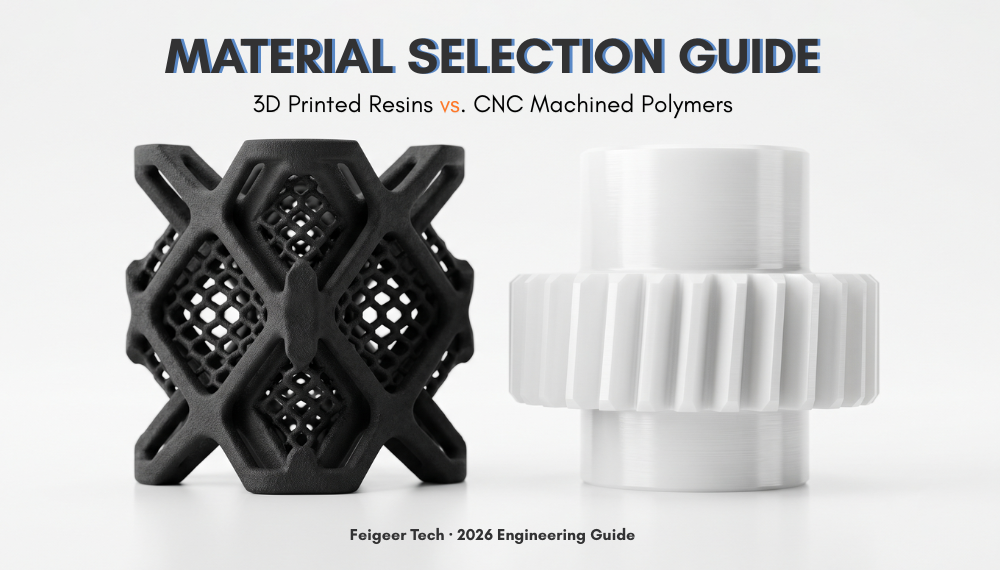

Both technologies support a wide range of advanced polymers, but their typical use cases differ based on how the material is processed.
Modern industrial 3D printing uses advanced polymers capable of producing excellent functional prototypes and complex end-use parts:
Standard & Engineering Resins (SLA): Exceptional for high-detail parts, transparent components, and ultra-smooth visual prototypes.

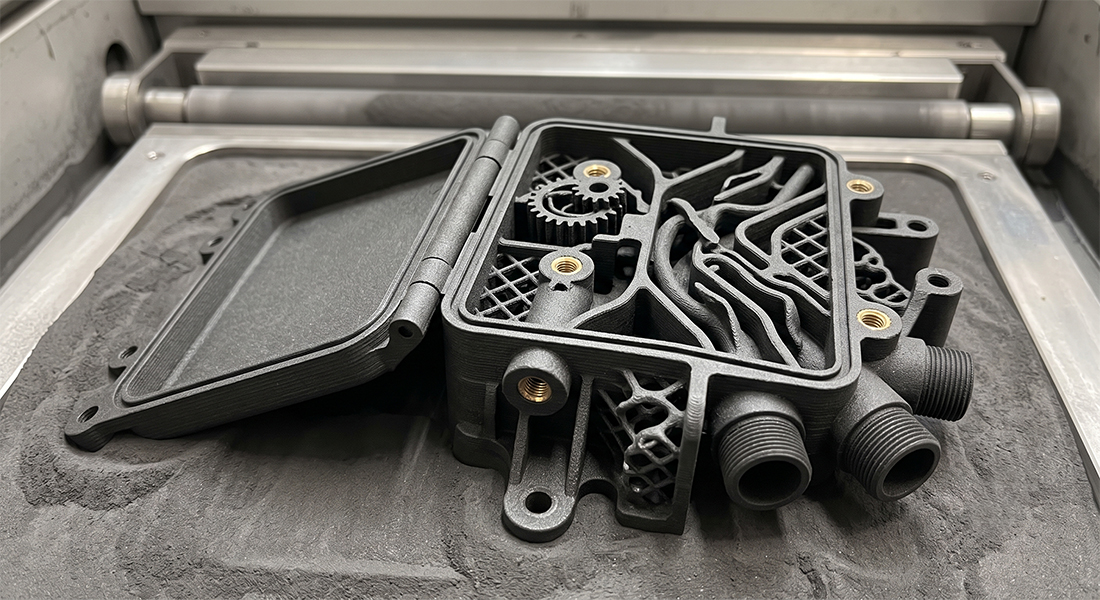

Nylon 11/12 (SLS): A robust, highly durable material perfect for snap-fits, living hinges, and complex functional assemblies without the need for support structures.
High-Temp/Composite Filaments (FDM): Carbon-fiber filled plastics and PC/ABS blends offer great stiffness for custom fixtures and manufacturing aids.
CNC machining unlocks access to extruded, high-performance engineering polymers required for extreme environments:
POM (Delrin / Acetal): High stiffness, low friction, and excellent dimensional stability. Perfect for precision gears, bushings, and assembly fixtures.
PEEK: A super-polymer with incredible high-temp resistance (250°C) and chemical resistance. Widely used in medical devices and aerospace.
PTFE (Teflon): Unmatched chemical resistance and ultra-low friction for seals, valves, and bearings.
Polycarbonate (PC) & Ultem: Used for high-impact applications, transparent covers, or extreme heat environments.
Cost is heavily dependent on your production volume and part geometry.
Production Volume | Recommended Process | Cost Rationale |
|---|---|---|
1–5 parts | 3D Printing | No CAM programming, custom tooling, or workholding required. Highly cost-effective for initial prototypes. |
5–20 parts | Depends on geometry | If the part is simple, CNC might be more cost-effective. If highly complex (e.g., internal cavities), 3D printing wins. |
20–100 parts | CNC Machining | Setup costs are absorbed across the batch. Faster cycle times make CNC the more economical choice. |
100+ parts | CNC Machining | Economies of scale drastically reduce the per-unit price for CNC turned or milled parts. |
For simple, one-off prototypes: 3D printing is faster. You can send a CAD file directly to the printer and often have a physical part ready within 24 to 48 hours.
For functional batches (10+ parts): CNC machining is often faster. While 3D printing requires hours of slow layer-building followed by post-processing (support removal, curing), a CNC machine can produce finished, ready-to-use plastic parts in minutes once the setup is complete.
To maximize efficiency, leading engineering teams deploy both technologies across different stages of product development.
Best Applications for 3D Printed Plastics:
Rapid form, fit, and function testing
Custom ergonomic grips and complex housings
Lightweight lattice structures and topology optimization
Low-volume manufacturing aids (custom jigs and fixtures)
Best Applications for CNC Machined Plastics:
Precision gears, sprockets, and bearing cages
Medical device components requiring FDA-grade, sterilizable materials
High-pressure fluid manifolds and valve seats
Components exposed to high friction, heavy torque, or extreme heat

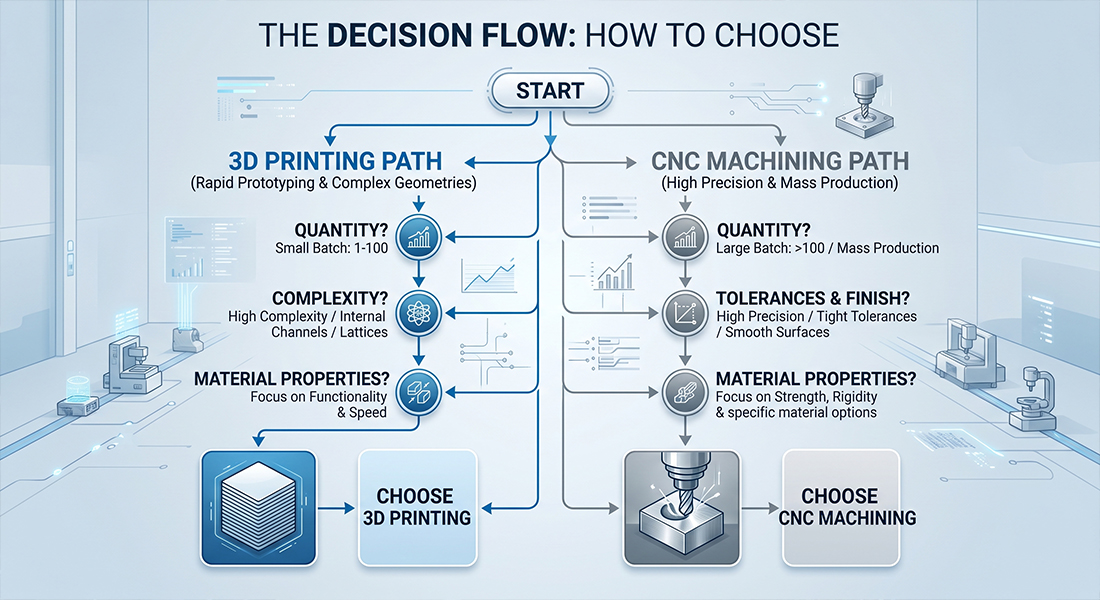

Still unsure? Follow this simple 3-step decision flow for your next plastic part:
Step 1: Does your design feature extreme internal complexity (e.g., conformal channels, enclosed hollows)?
Yes ➔ Choose 3D Printing
No ➔ Proceed to Step 2
Step 2: Do you need ultra-tight tolerances (±0.05 mm) or high-performance solid materials (PEEK, Teflon)?
Yes ➔ Choose CNC Machining
No (Standard tolerances and materials are fine) ➔ Proceed to Step 3
Step 3: What is your production volume?
1 to 5 parts ➔ Choose 3D Printing
20+ parts ➔ Choose CNC Machining
Property | 3D Printed Plastics (FDM/SLA/SLS) | CNC Machined Plastics (Turning/Milling) |
|---|---|---|
Geometric Freedom | Excellent (Unrestricted complexity) | Limited by cutting tool access |
Structural Strength | Anisotropic (Varies by build direction) | Isotropic (100% solid, uniform strength) |
Tolerance Limits | ± 0.1 mm to ± 0.3 mm | ± 0.01 mm to ± 0.05 mm |
Surface Finish | Varies (Layer lines visible without post-processing) | Smooth (Machined finish off the tool) |
Tooling Costs | Zero (Direct from CAD) | Moderate (Requires CAM and fixtures) |
Can PEEK be 3D printed?
Yes, specialized high-temperature FDM printers can print PEEK, making it great for complex, high-heat prototypes. However, for end-use parts requiring PEEK's maximum mechanical properties and precise tolerances, CNC machining solid PEEK billets remains the industry standard.
Is CNC machining more accurate than 3D printing?
Generally, yes. While industrial SLA and SLS printers offer fantastic precision, a well-calibrated CNC mill or lathe routinely holds tighter tolerances (down to ± 0.01 mm) on engineering plastics compared to most additive processes.
Which process is best for plastic gears?
For functional, load-bearing gears, CNC machining POM (Delrin/Acetal) is the best choice. Delrin's high fatigue endurance and natural lubricity allow CNC-machined gears to run smoothly for millions of cycles. However, for quick fit-testing, a 3D-printed Nylon gear is a great starting point.
Can I use both processes on the same project?
Absolutely. At Feigeer Tech, we frequently see engineering teams use 3D printing for the first 3 or 4 design iterations to save time and money. Once the design is frozen, they seamlessly switch to CNC machining for the final functional testing and low-volume production.
Whether you need the rapid agility of 3D printing to accelerate your design cycle, or the uncompromised strength of CNC machining for your final production parts, selecting the right process is the key to project success.
Because Feigeer Tech operates both advanced industrial 3D printing facilities and precision CNC machining centers, we don't have to push you toward one technology. We provide truly objective, expert DFM (Design for Manufacturability) feedback.
Our engineering team will evaluate your CAD files, material requirements, and target volumes to recommend the most cost-effective and reliable manufacturing method for your specific application.
