Metal 3D Printing Vs. CNC Machining: Differences, Costs & Which Is Better in 2026

For decades, CNC machining (Subtractive Manufacturing) has been the undisputed king of producing custom metal parts. However, the rapid advancement of Metal 3D Printing (Additive Manufacturing)—specifically processes like SLM and DMLS—has given engineers an entirely new way to build parts.

So, should you 3D print your metal parts, or stick to CNC machining?

The truth is, neither process is universally "better." They are distinct technologies designed to solve different engineering problems. To help you make the most cost-effective and functionally sound decision for your next project, we’ve created this comprehensive decision guide.

Head-to-Head Technical Comparison

To help your engineering and procurement teams quickly evaluate the best manufacturing method for your specific project, here is a comprehensive breakdown of how metal 3D printing and CNC machining compare across critical production parameters:

Pro Tip for Buyers: Notice that while metal 3D printing wins on material waste and geometric complexity, CNC machining dominates the categories that matter most for functional mechanical parts: precision, surface finish, structural strength, and volume cost.

Key Comparisons: Answering Your Top Questions

Before diving into specific use cases, let's address the most common questions procurement teams and engineers ask when comparing these two methods.

1. Cost Analysis: Which is Cheaper?

• For 1 to 5 parts (Highly Complex): Metal 3D printing can be cheaper for highly intricate designs. It requires no custom tooling, no complex workholding fixtures, and less CAM programming time. You only pay for machine time and the exact amount of powder used.

• For 50 to 10,000+ parts: CNC Machining wins by a landslide. Once a CNC machine is programmed and set up, it can churn out parts extremely fast. The economies of scale heavily favor CNC turning and milling.

2. CNC Machining vs. Metal 3D Printing: Which Is Faster?

For prototypes with extremely complex geometries, metal 3D printing may reduce initial development time because no custom tooling or mold making is required. You can send a CAD file directly to the printer.

However, once you factor in the mandatory post-processing steps—such as support removal, thermal stress relief (heat treatment), surface finishing, and secondary machining to hit tolerances—CNC machining is often significantly faster for functional engineering parts. For any batch production beyond a few units, a CNC lathe or mill will always outpace a 3D printer.

3. CNC vs. Metal 3D Printing Materials (Compatible Materials)

When comparing materials, CNC machining offers a much wider, more cost-effective, and highly available selection. While 3D printing relies on specialized, expensive atomized metal powders, CNC utilizes standard, 100% dense solid billets.

Compatible Materials for Metal 3D Printing:

• Titanium

• Inconel (Superalloys)

• Stainless Steel

• Aluminum

Compatible Materials for CNC Machining:

• Aluminum

• Brass

• Copper

• Titanium

• Carbon Steel & Alloy Steel

• Stainless Steel

• Engineering Plastics (PEEK, Delrin, Nylon, etc.)

4. Can CNC Machining and Metal 3D Printing Be Used Together?

Yes! This is known as Hybrid Manufacturing.

Many aerospace and medical manufacturers combine both technologies. They first print a near-net-shape component, then finish critical bearing surfaces and threaded holes using CNC machining. This hybrid workflow combines the geometric freedom of additive manufacturing with the precision of subtractive machining.

The Decision Guide: When to Choose Which?

To simplify your sourcing strategy, here is a clear breakdown of when to deploy each technology.

When Should You Choose Metal 3D Printing?

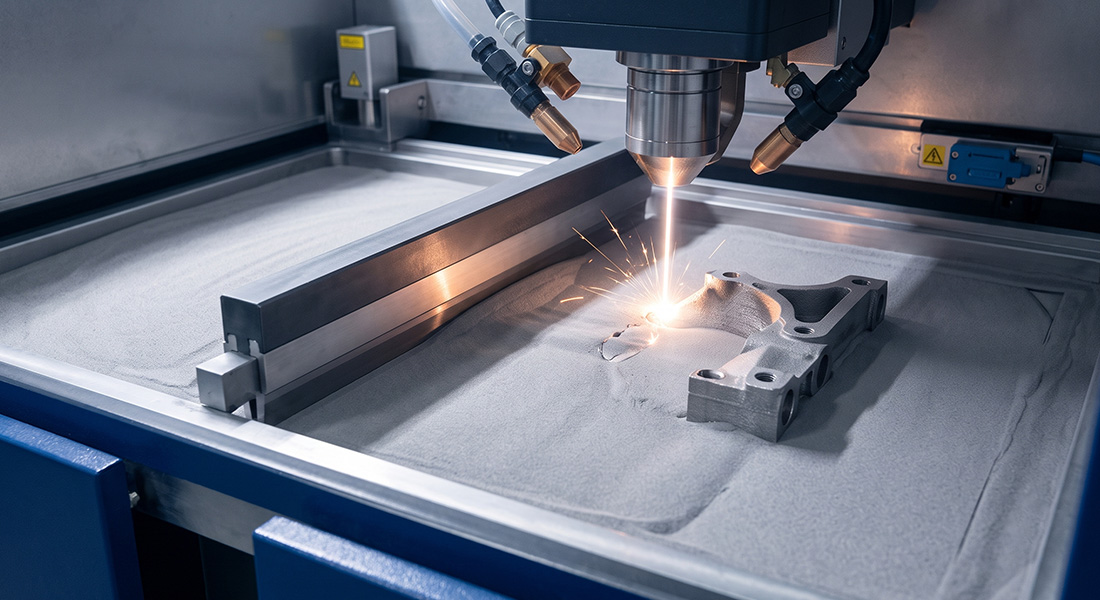

Metal 3D printing (SLM/DMLS) is highly specialized. It is usually reserved for applications where design innovation outweighs high manufacturing costs.

Choose Metal 3D Printing if you need:

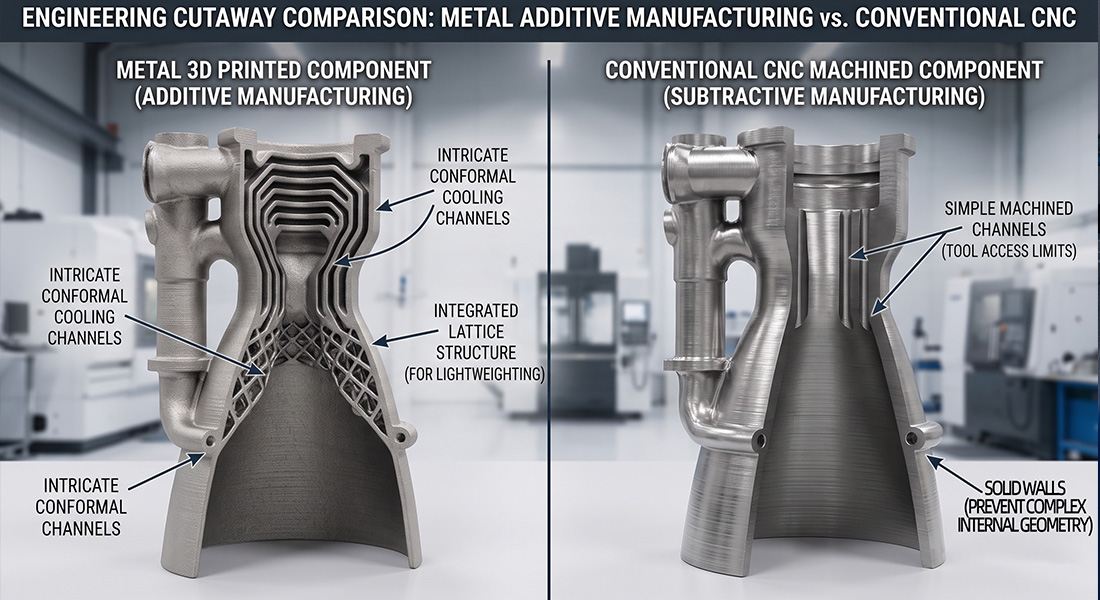

• Internal cooling channels

• Topology optimization (lightweight, lattice structures)

• One-off aerospace prototypes

• Medical implants

• Extremely complex geometries that cutting tools cannot reach

When Should You Choose CNC Machining?

CNC Machining remains the backbone of the industrial world. For the vast majority of functional, mechanical, and rotational components, subtractive manufacturing is the only viable choice.

Choose CNC Machining if you need:

• Tight tolerances: CNC easily holds ±0.01 mm to ±0.005 mm.

• Production quantities: The only cost-effective choice for batches ranging from 50 to 100,000+ pieces.

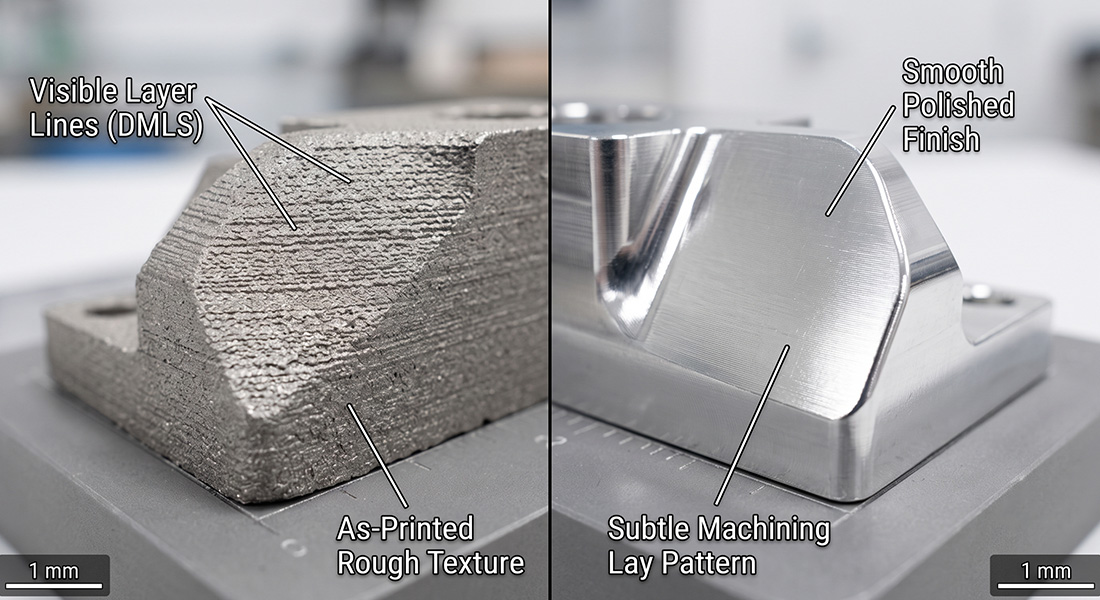

• Smooth finishes: CNC achieves polished finishes (Ra 0.4 - 0.8 µm) directly off the machine.

• High strength: Solid billets offer isotropic strength with zero internal micro-porosity.

• Lower overall cost: Cheaper raw materials and faster cycle times per part.

The "Custom Shaft" Exception: A Clear Winner

If you are designing rotational components—such as custom shafts, pins, axles, or drive components—the debate ends immediately.

Rotational parts require perfect concentricity and smooth bearing surfaces. A CNC Lathe (CNC Turning) is specifically designed to spin metal at high speeds, shaving it down to perfect cylinders with mirror-like finishes in minutes. 3D printing a shaft would be slow, expensive, and yield a weaker part with a rough surface that would quickly destroy any mating bearings.

Frequently Asked Questions (FAQ)

Is metal 3D printing stronger than CNC machining?

Generally, no. CNC machined parts are cut from solid billets (extruded or forged), resulting in 100% dense isotropic strength (uniform strength in all directions). Metal 3D printed parts often have micro-porosity and anisotropic properties, making them slightly weaker under certain stresses unless subjected to intense post-processing.

Is CNC machining cheaper than metal 3D printing?

For a single, highly complex prototype, 3D printing can sometimes be cheaper because it requires no custom tooling. However, for production batches of 50, 500, or 10,000+ parts, CNC machining is exponentially cheaper due to faster cycle times and much lower raw material costs.

Can metal 3D printed parts be CNC machined?

Yes. This is called hybrid manufacturing. A part is 3D printed to a near-net shape and then placed into a CNC mill or lathe to achieve tight tolerances and smooth surface finishes on critical areas.

Which process is better for prototypes?

It depends on your goal. If you need a fast visual model or have extremely complex internal geometries, metal 3D printing is excellent. If you need to test the true functional strength, bearing fits, or surface friction of the final production part, CNC machining is the better choice.

What tolerances can metal 3D printing achieve?

Most standard metal 3D printers (SLM/DMLS) can hold tolerances of roughly ±0.1 mm to ±0.2 mm. In contrast, precision CNC machining routinely holds much tighter tolerances of ±0.01 mm to ±0.005 mm.

Can aluminum be 3D printed?

Yes, aluminum alloys (like AlSi10Mg) can be 3D printed using SLM or DMLS technologies. However, printing aluminum is significantly more expensive and slower than CNC machining standard 6061 or 7075 aluminum billets.

When should I choose CNC instead of additive manufacturing?

You should choose CNC machining when your project requires tight tolerances, smooth surface finishes, high structural strength, production volumes greater than a few units, or involves precision rotational parts like custom shafts.

Need Help Choosing the Right Manufacturing Process?

Not every part is best suited for CNC machining—and not every design benefits from metal 3D printing.

At Feigeer Tech, our engineering team evaluates your drawings based on geometry, tolerances, material requirements, production volume, and cost targets before recommending the most suitable manufacturing process.

If CNC machining is the right solution, we'll also provide DFM (Design for Manufacturability) feedback to help reduce machining time, improve manufacturability, and optimize overall production costs.
